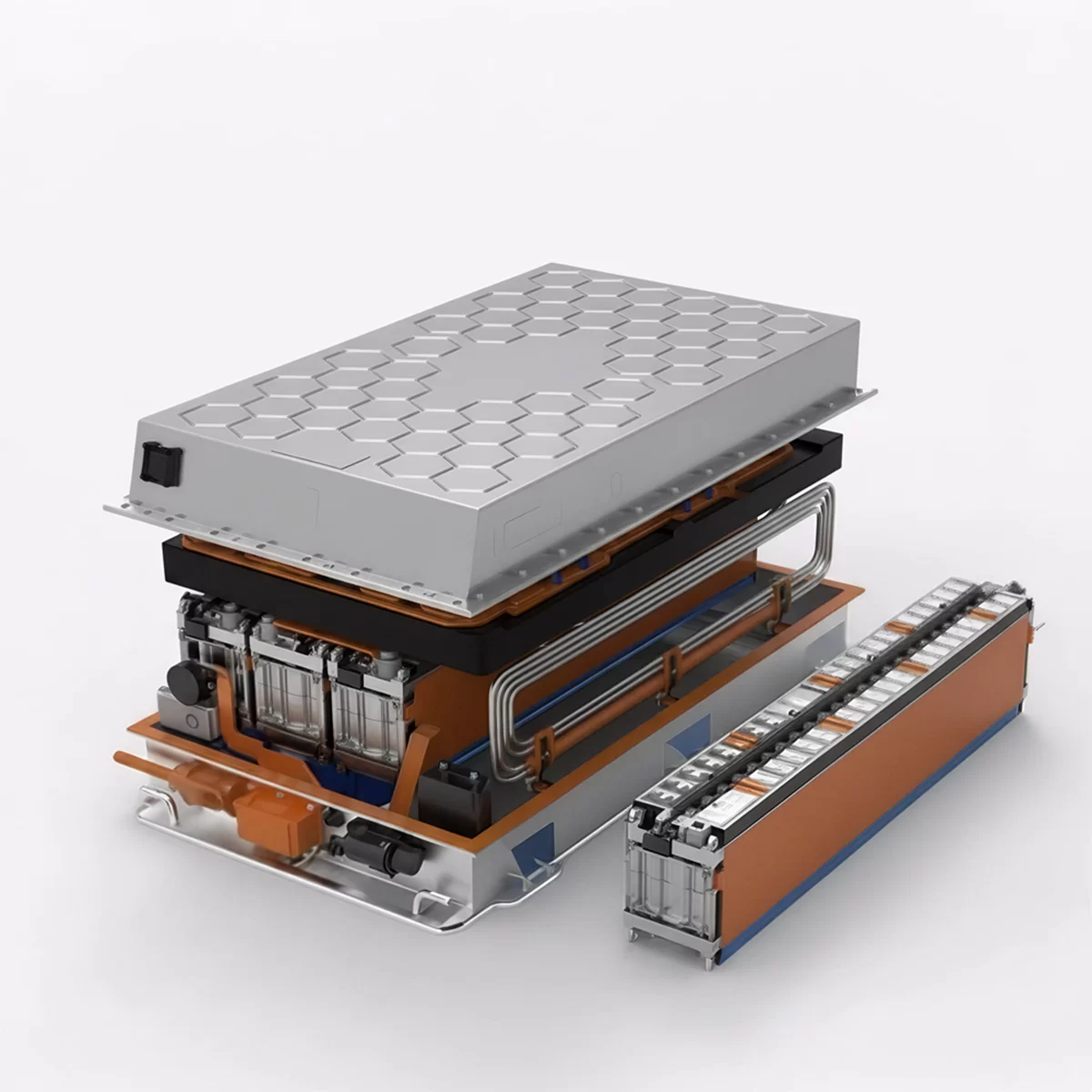

The Brogen LFP Standard Battery Pack series is a modular battery platform for commercial electric vehicles, covering system energies from 17 kWh to 35 kWh and nominal voltages from 64 V to 307.2 V. Designed around standardized B-size and C-size form factors, the series allows OEMs and vehicle integrators to support multiple energy configurations on a common chassis platform while reducing development complexity.
Multiple prismatic LFP cell options, ranging from 90 Ah to 304 Ah, provide flexibility for different vehicle classes and duty cycles. The standardized architecture simplifies vehicle integration, fleet maintenance, and future battery upgrades.
Advanced thermal management combines PTC heating and liquid cooling to maintain stable performance in ambient temperatures from −30°C to +60°C. Most variants are rated IP68/69 for protection against water immersion and high-pressure washing, making them suitable for demanding commercial vehicle applications.
Fast-charging capability of up to 250 A (1.5 C) helps reduce vehicle downtime, while detachable core components improve serviceability. The modular design also supports second-life utilization and end-of-life recycling programs.
For applications requiring higher energy density within the same installation space, explore the LFP High-Energy Battery Pack Series. For extreme-temperature environments and enhanced thermal control, see the LFP Liquid-Cooled Battery Pack Series.
Key Parameters
| System Energy Range | 17 kWh to 35 kWh |
| Nominal Voltage Range | 64 V to 307.2 V |
| Energy Density | ≥125 to 144 Wh/kg |
| Protection Rating | IP67 to IP68/69 |
| Operating Temperature | -30 to +60 °C |
| Charge Rate | 1 C / 1.5 C / 250 A |
