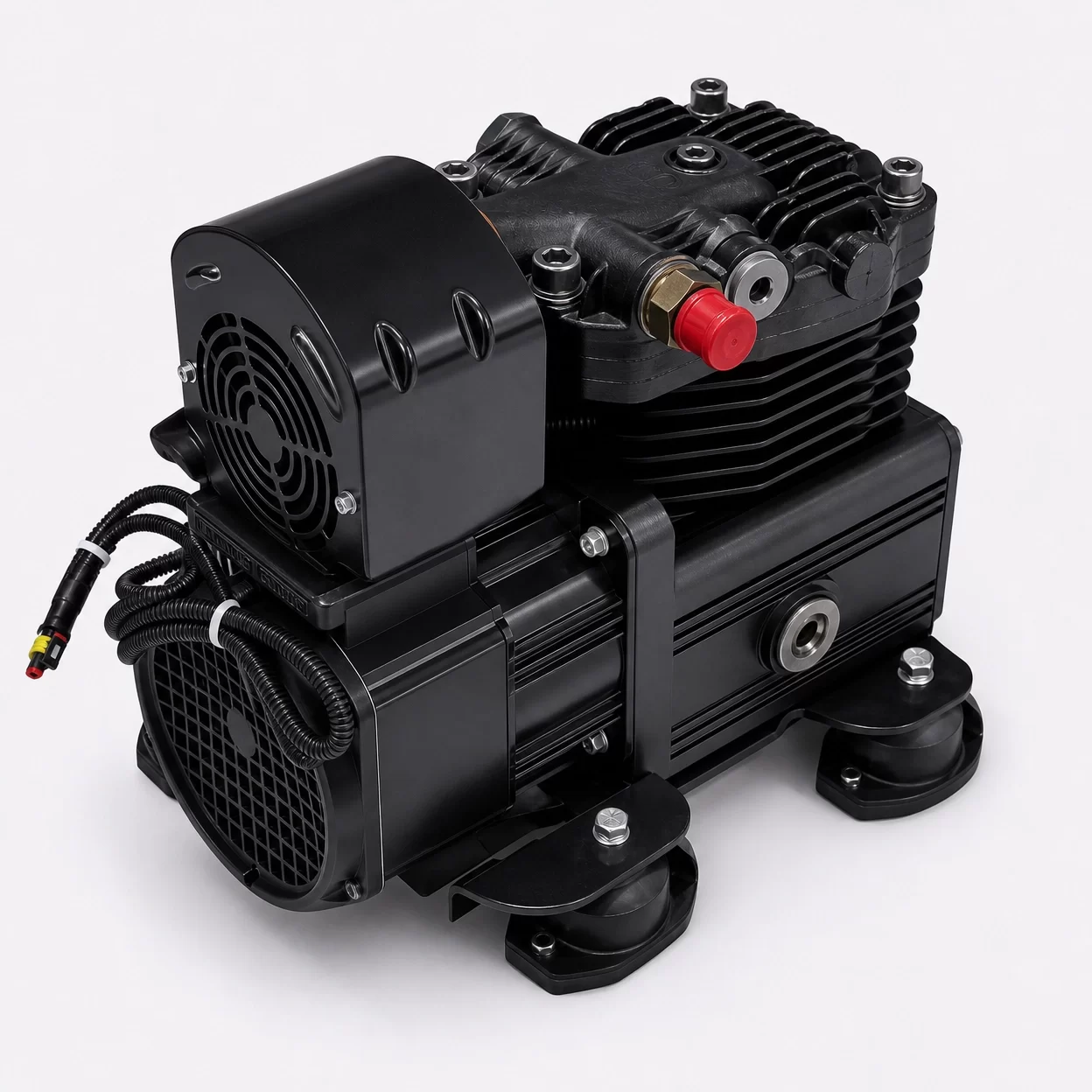

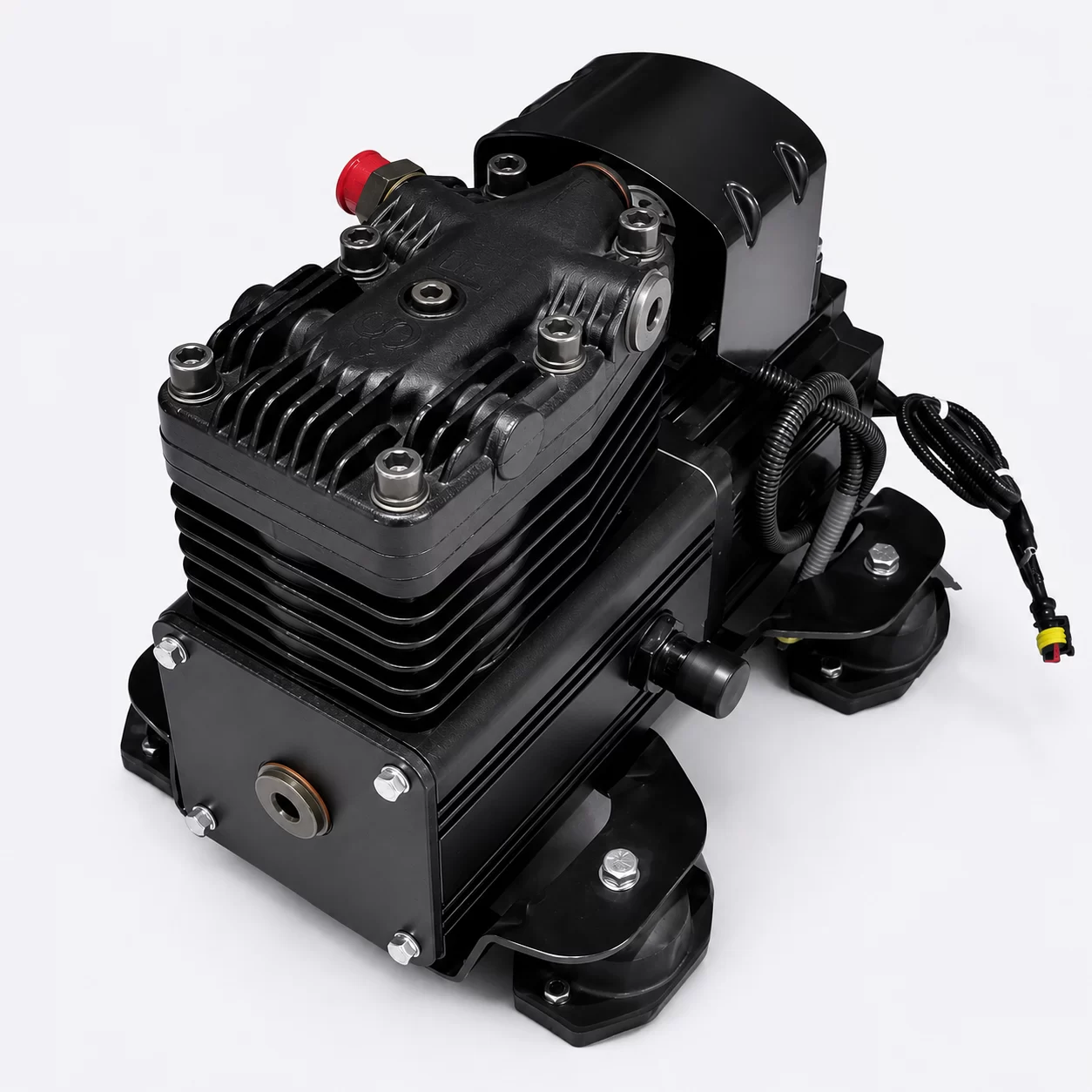

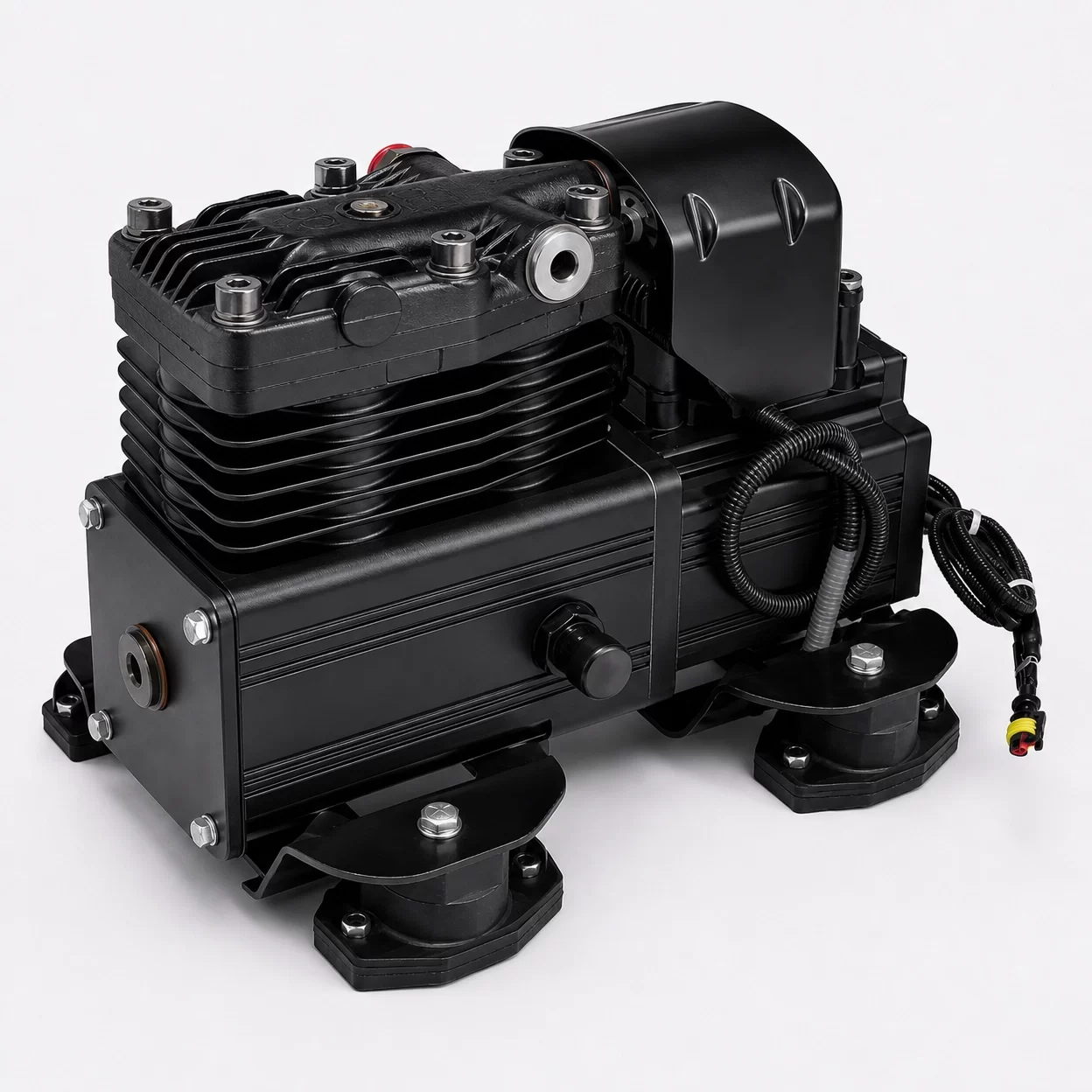

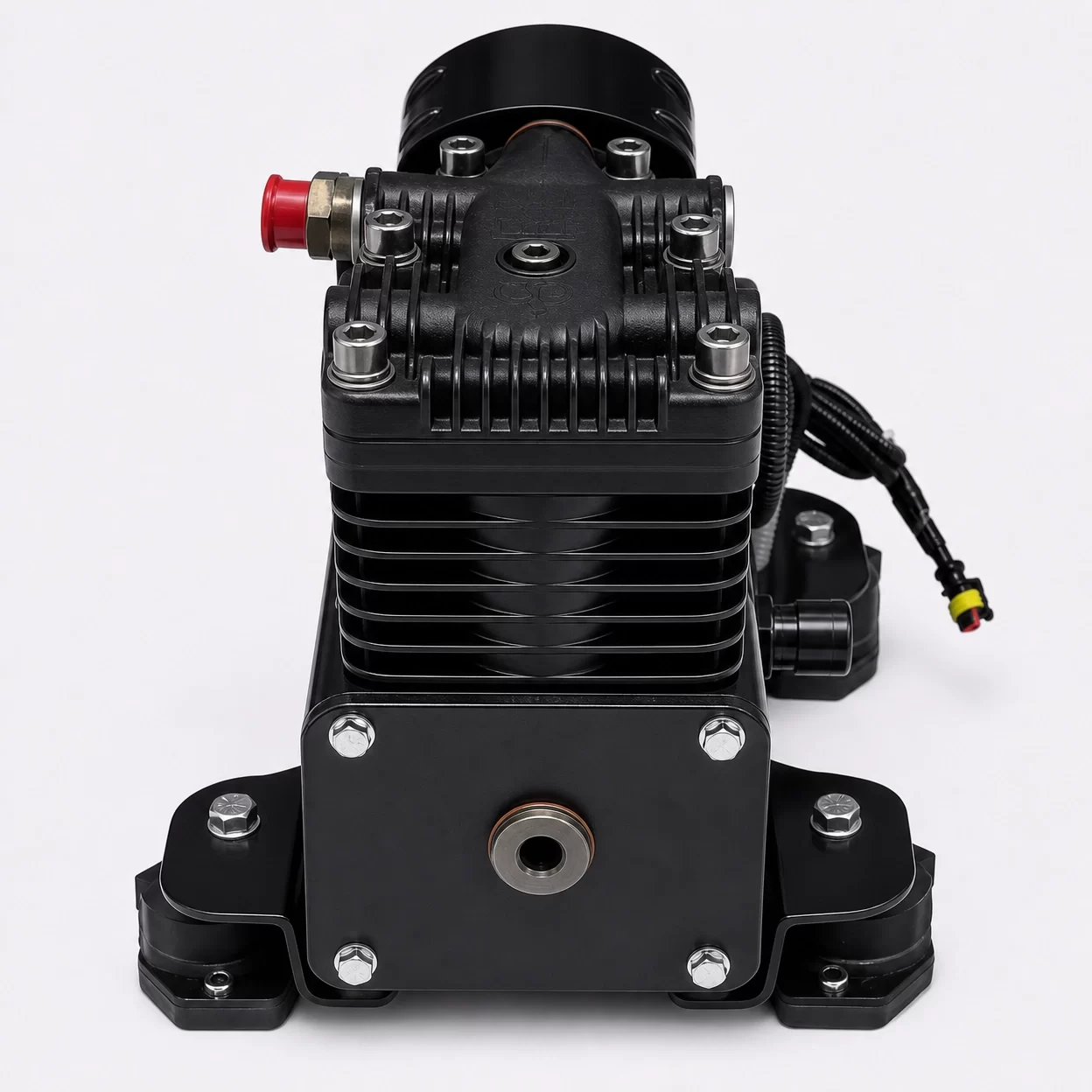

Brogen Air Brake Compressor BG-AUX-OEB009H

Brogen Air Brake Compressor BG-AUX-OEB009H - Imagen 2

Brogen Air Brake Compressor BG-AUX-OEB009H

Descargar catálogo

Enviar consulta

Four sub-models (EAC-12-63 to EAC-38-22) covering 120–380 L/min for light and mid-size vehicles up to 9 m
Pressurizes 0–0.65 MPa within 3 min; reaches full 0–1 MPa within 5 min
IP68 sealing and 3G vibration resistance for demanding operating environments
Compatible with 30–200 L air tanks across all variants
Oil-free piston design — no oil contamination, maintenance-free throughout lifecycle

Añadir a la lista de deseos

Compara

SKU BG-AUX-OEB009H Categorías Air Brake Compressor, Sistema auxiliar Etiquetas 3G vibration, EAC series, fast pressurization, IP68, Vehículo comercial ligero, oil-free piston, under 9m MarcaBrogen

Descripción
Información

The BG-OEB009H series covers four EAC sub-models ranging from 120 to 380 L/min and 1.5 to 4 kW, designed for 4×2 to 6×4 light and mid-size hybrid and electric commercial vehicles up to 9 meters.

All models achieve 0–0.65 MPa pressurization within 3 minutes and full 0–1 MPa inflation within 5 minutes. IP68 sealing and 3G vibration resistance provide superior environmental protection compared to standard IP67 units, making this series suitable for vehicles operating on rough terrain or in high-humidity conditions. Compatible air tank volumes range from 30 to 200 L.

Información adicional

Aplicación	4×2–6×4 commercial vehicle, bus up to 9 m
Rated exhaust flow	120 \| 160 \| 250 \| 380 L/min
Potencia del motor	1.5 \| 1.8 \| 3 \| 4 kW
Rated exhaust pressure	1 MPa
Max exhaust gas temperature	150°C
Peso (kg)	25 \| 25.5 \| 48 \| 52
Air tank volume	30–70 \| 40–90 \| 90–140 \| 120–200 L
Pressurize to 0.65 MPa	Within 3 min
Full inflation to 1 MPa	Within 5 min
Nivel de protección	IP68
Temperatura de funcionamiento	-40°C ~ +60°C
Vibration resistance	3G
Noise level	72 dB
