Brogen Air Brake Compressor BG-AUX-OEB002M

Brogen Air Brake Compressor BG-AUX-OEB002M

Four models covering 200–300 L/min flow range with 2.2–3.0 kW motor power
OEB002 supports 380VAC / 300VAC high-voltage input for high-voltage EV platforms

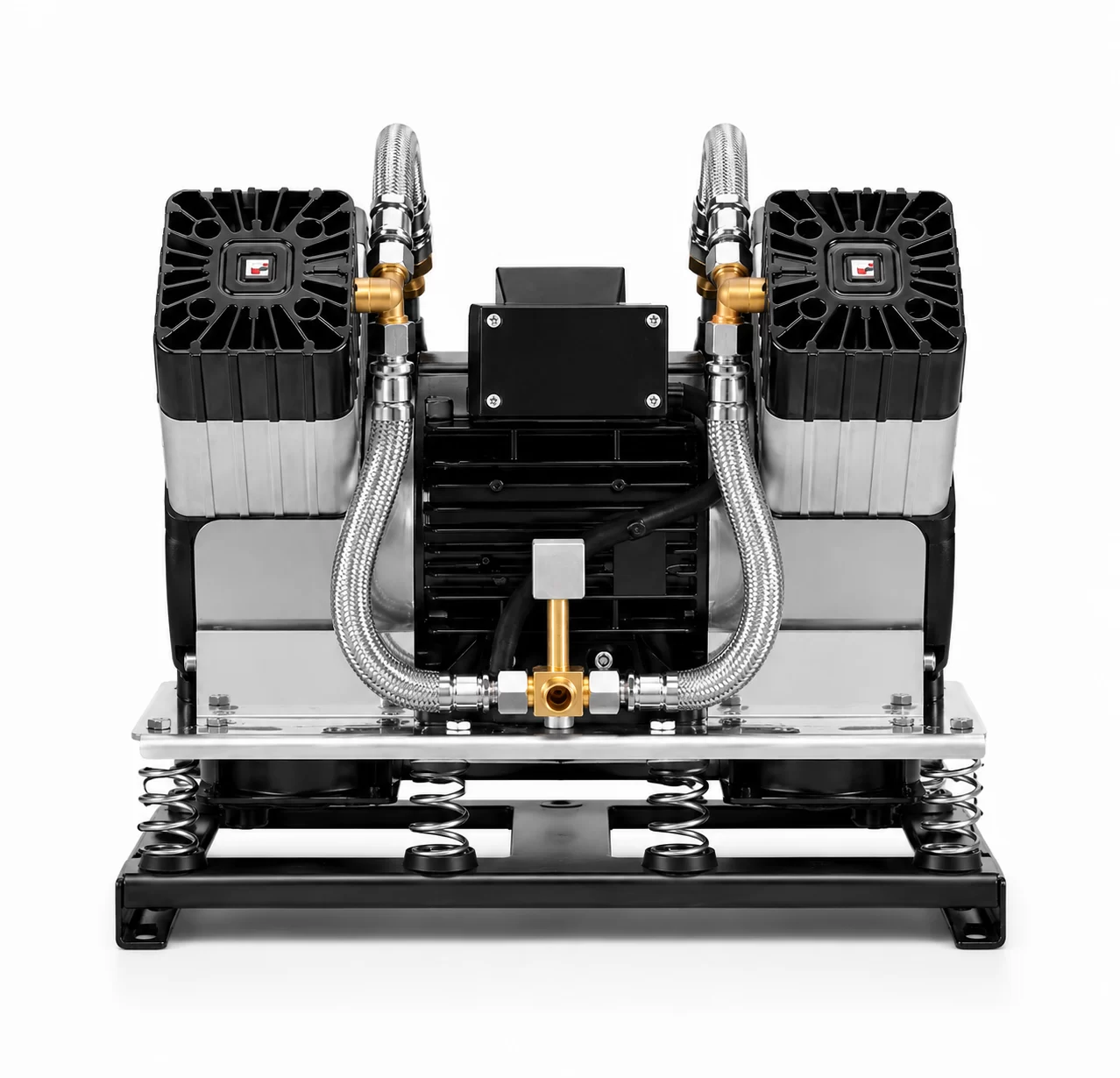

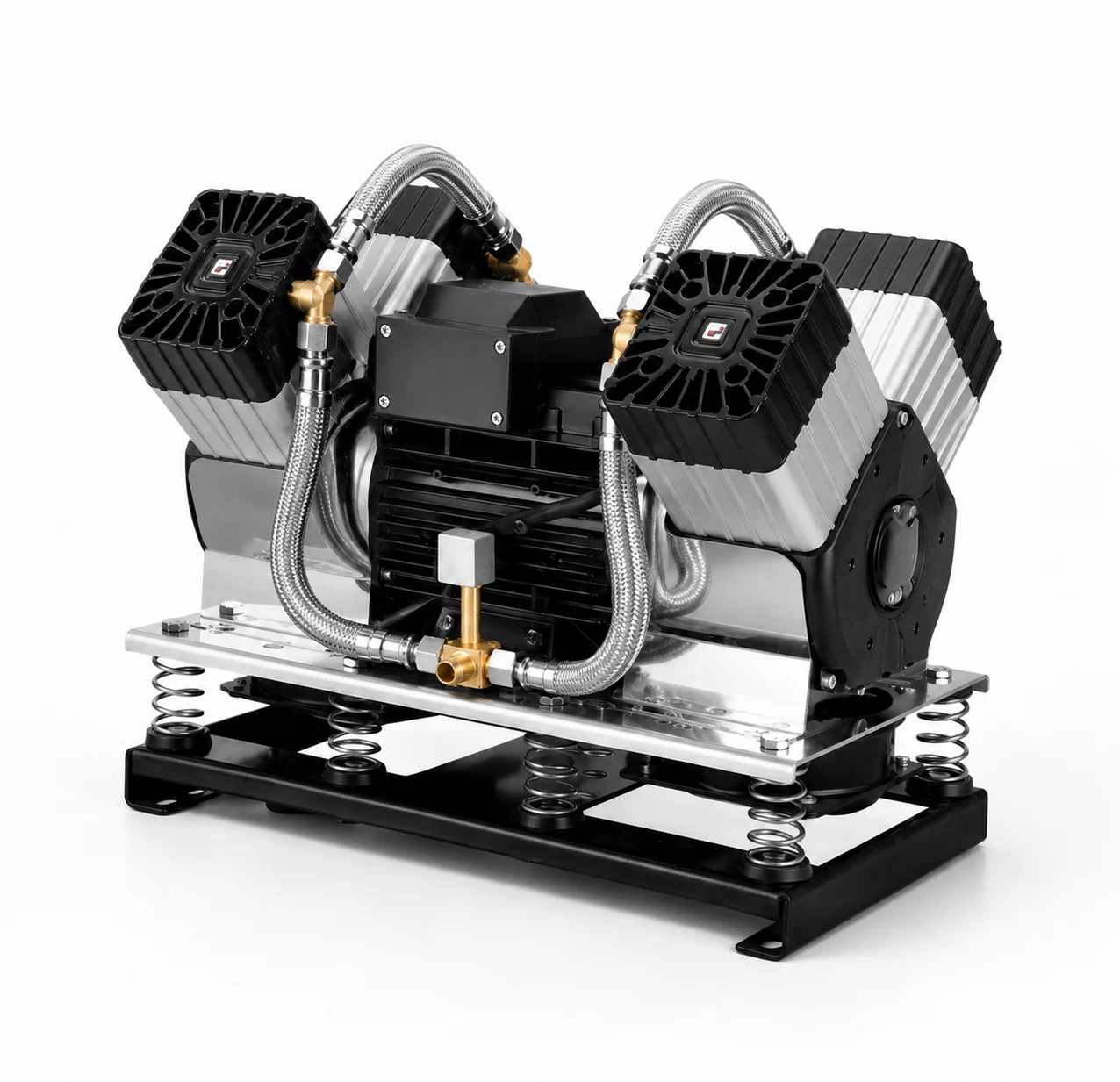

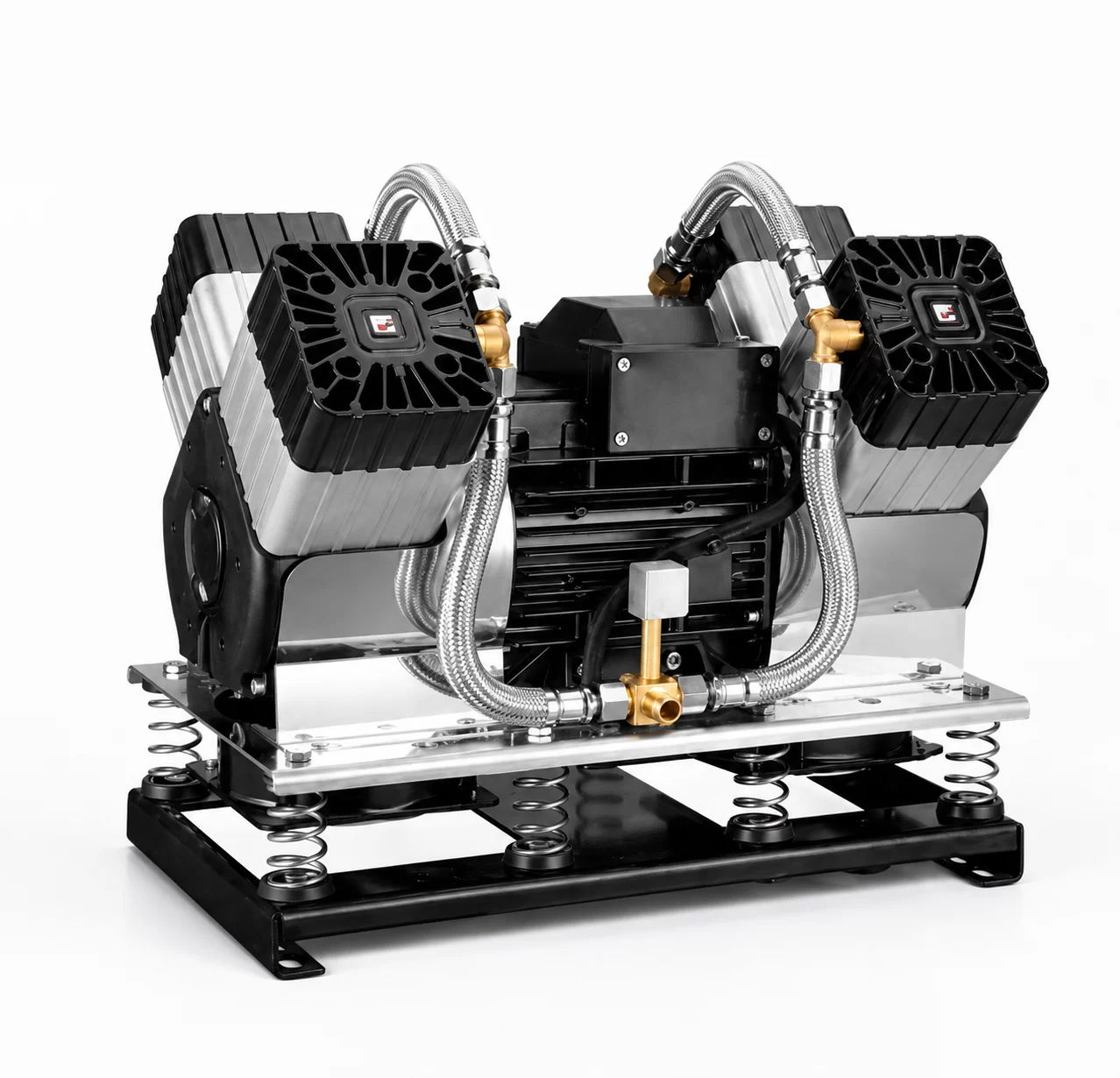

Twin-cylinder parallel layout delivers stable, consistent compressed air output
Oil-free piston technology — zero oil contamination, maintenance-free lifecycle
IP67 protection with -40°C to +60°C operating range across all variants

SKU BG-AUX-OEB002M Categorias Air Brake Compressor, Sistema auxiliar Tags 380VAC, 6–9m, IP67, mid commercial vehicle, oil-free piston, twin-cylinder, two-stage MarcaBrogen

Descrição
Informações

The BG-OEB002M series comprises four oil-free two-stage electric air brake compressor models (200, 240, 240, and 300 L/min) with motor power ranging from 2.2 to 3.0 kW, covering the full range of mid-size hybrid and electric commercial vehicles from 6 to 9 meters. OEB002 additionally supports 380VAC / 300VAC high-voltage input.

All models share a twin-cylinder parallel layout for stable, consistent airflow and adopt oil-free piston technology for a contamination-free, maintenance-free air supply. IP67 protection and -40°C to +60°C operating range apply across the series, ensuring dependable performance in all-weather conditions for buses, light trucks, and logistics vehicles.

Informação adicional

Aplicativo	6–9 m, Bus, Light Truck, Logistics Vehicle
Rated exhaust flow	240 \| 200 \| 240 \| 300 L/min
Motor power	3.0 \| 2.2 \| 3.0 \| 3.0 kW
Rated exhaust pressure	1 MPa
Max exhaust pressure	1.2 MPa
Peso (kg)	48 \| 45 \| 45 \| 45
Dimensions (L×W×H)	500×285×320 mm \| 495×385×355 mm
Input voltage	380VAC \| 300VAC
Temperatura operacional	-40°C ~ +60°C
Nível de proteção	IP67
