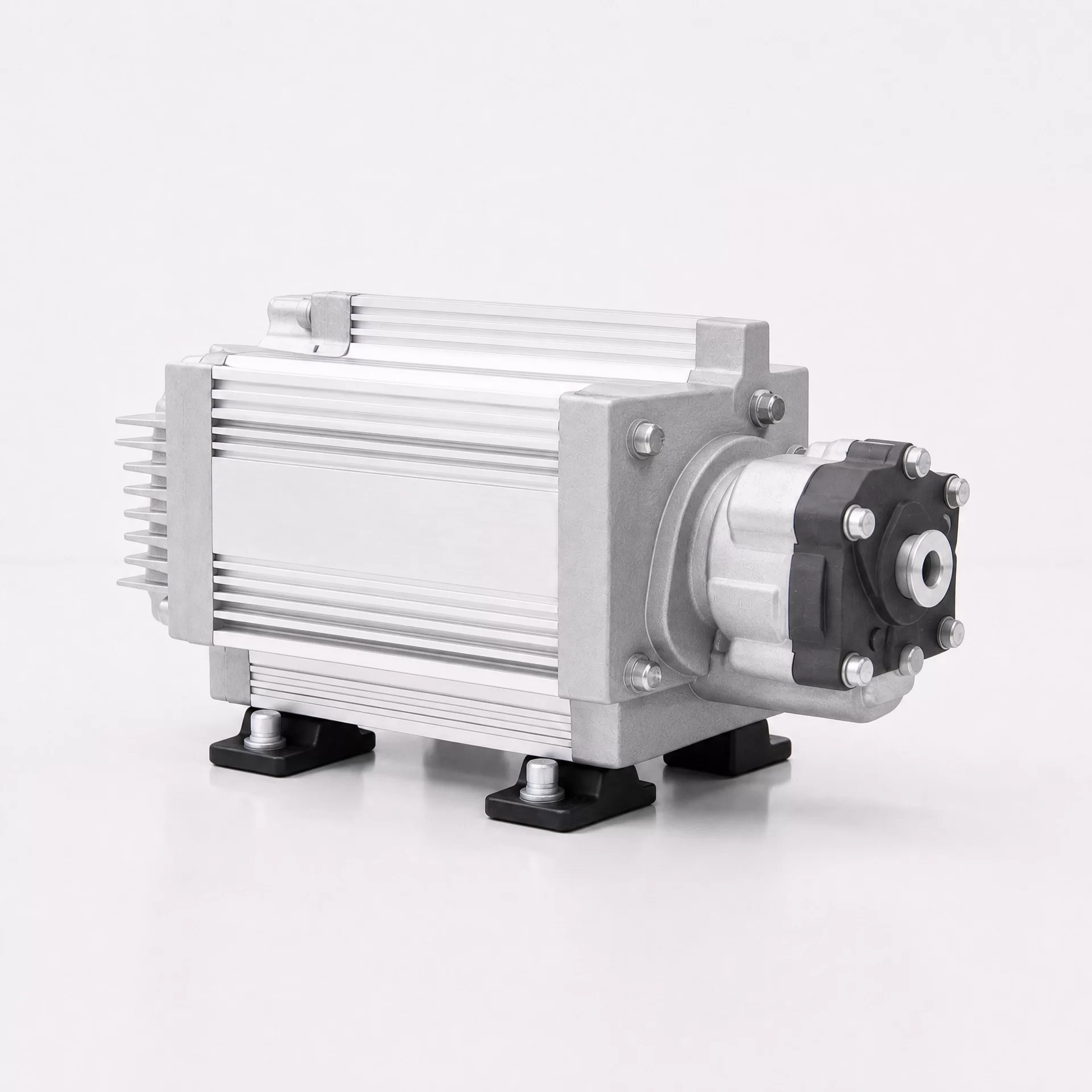

Brogen Electric Power Steering Pump BG-AUX-EHPS-HVC

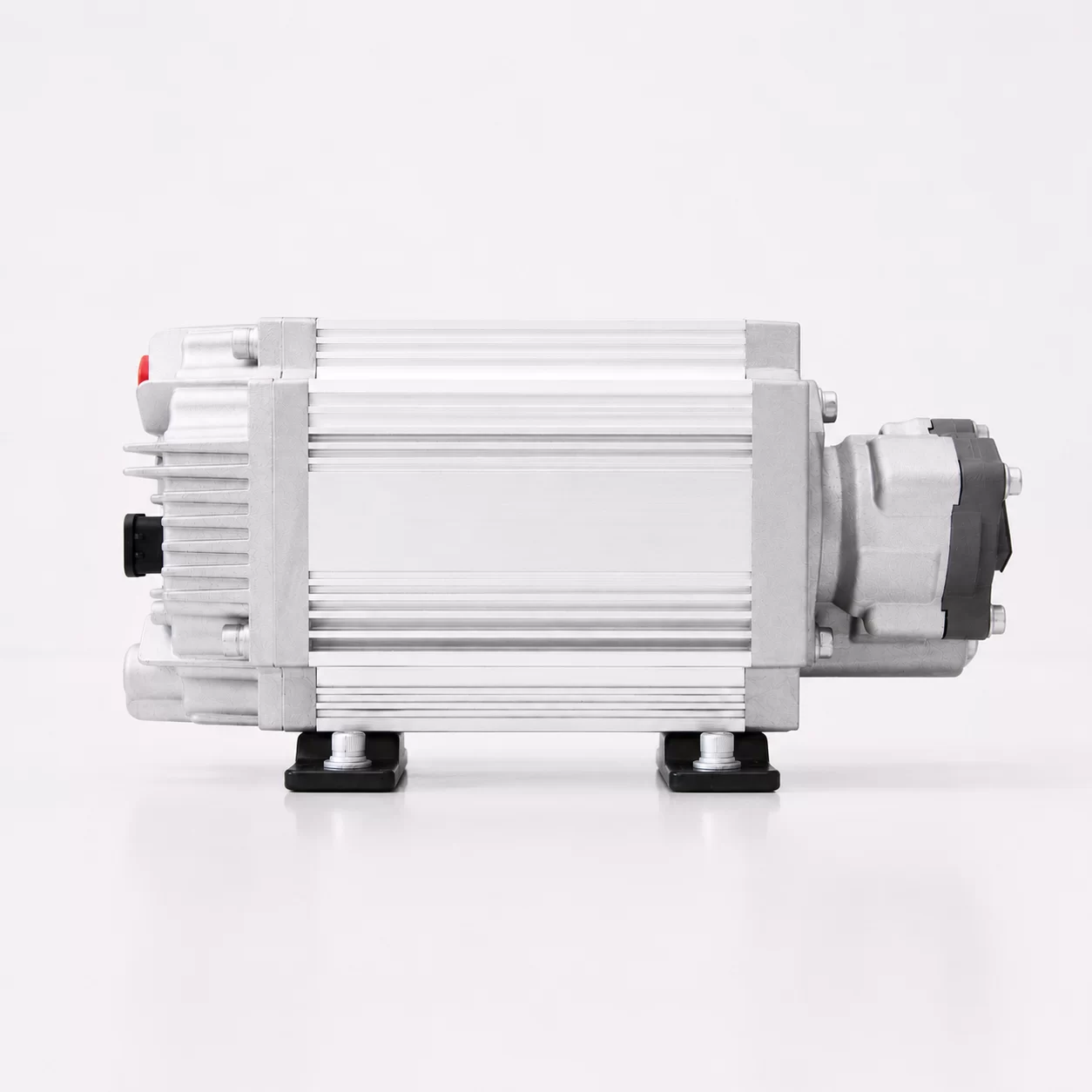

Brogen Electric Power Steering Pump BG-AUX-EHPS-HVC - Görsel 2

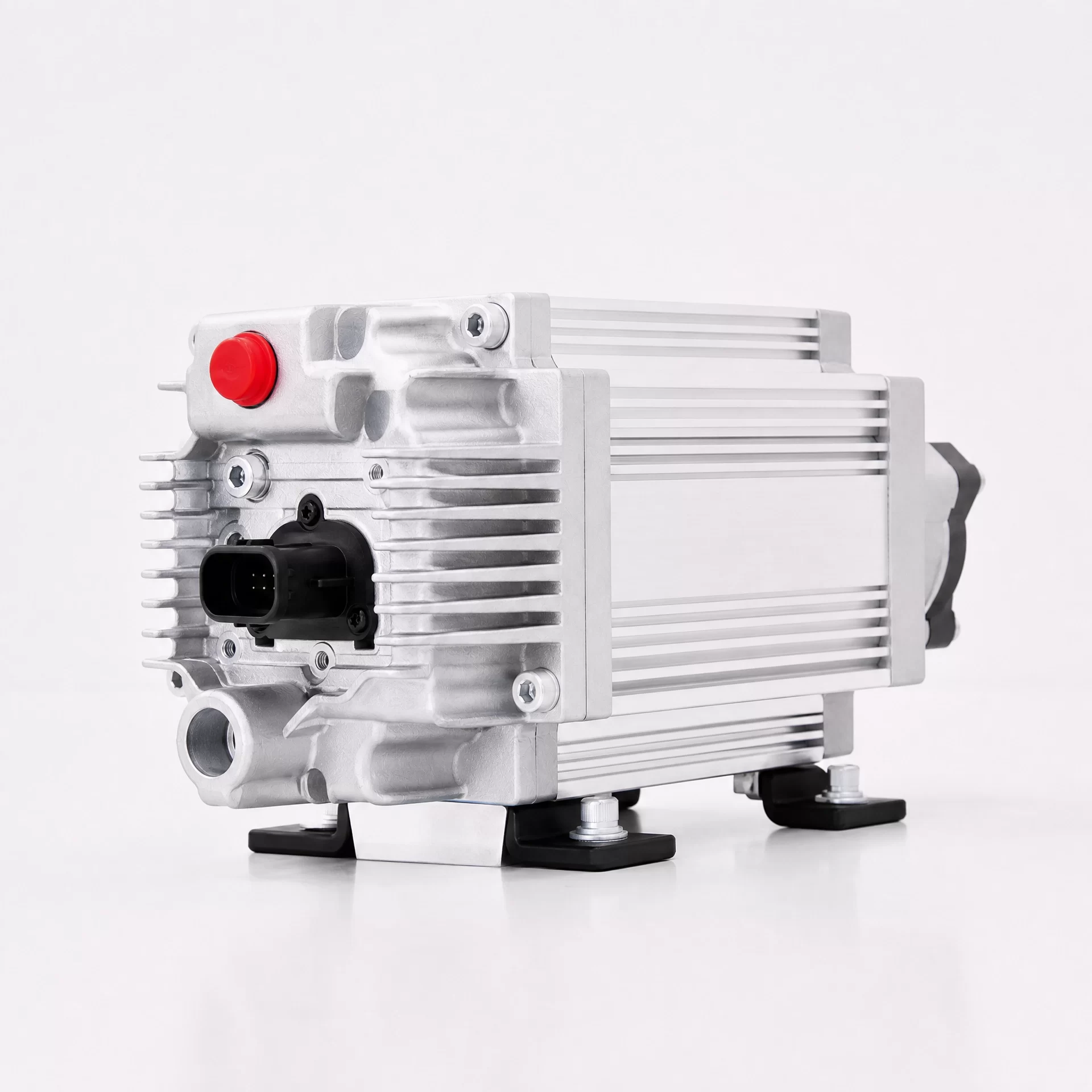

Brogen Electric Power Steering Pump BG-AUX-EHPS-HVC - Görsel 3

Brogen Electric Power Steering Pump BG-AUX-EHPS-HVC

Kataloğu İndirin

Soruşturma Gönder

Integrated controller eliminates external ECU
Supports 240–750VDC vehicle architectures
Precise closed-loop steering control
Reduced wiring and installation complexity
Designed for commercial EV applications

İstek listesine ekle

Karşılaştırma

SKU BG-AUX-EHPS-HVC Kategoriler Yardımcı Sistem, Elektrikli hidrolik direksiyon pompası (EHPS) Etiketler 240–750 VDC, ECU Integrated, HV Integrated, Intelligent Control, New Energy Vehicle, No External Controller MarkaBrogen

Açıklama
Bilgi

BG-AUX-EHPS-HVC is an advanced Electric Hydraulic Power Steering Pump (EHPS) featuring an integrated high-voltage controller or ECU within a single compact unit. Designed specifically for commercial electric vehicles, including electric trucks, buses, shuttle vehicles, and specialty commercial platforms, the system eliminates the need for a separate steering controller, reducing wiring complexity and installation costs.

Supporting voltage ranges from 240VDC to 750VDC, BG-AUX-EHPS-HVC is compatible with both medium- and high-voltage commercial EV architectures. The integrated control system enables precise speed and pressure regulation, ensuring smooth steering performance across varying road conditions and vehicle loads.

With a compact design, wide operating temperature range from -40°C to +85°C, and optimized hydraulic efficiency, BG-AUX-EHPS-HVC helps OEMs simplify vehicle integration while improving system reliability and reducing total component count.

Ek bilgi

Rated Power	1.5 kW
Tepe Güç	3 kW
Nominal gerilim	500 VDC \| 336 VDC \| 500 VDC
Controller Voltage Range	400–750 VDC \| 240–450 VDC \| 400–750 VDC
Rated Current	4.5 A \| 5.5 A \| 4.5 A
Rated Torque	11 N·m
Peak Torque	86 N·m \| 70 N·m
Rated Speed	1680 r/min \| 1200 r/min \| 1500 r/min
Working Speed	880–1000 r/min \| 1200 r/min
Working Pressure	13 ± 0.3 MPa \| 10 ± 0.3 MPa \| 13 ± 0.3 MPa
Flow	12 L/min \| 9 L/min \| 11 L/min
Displacement	7.2 ml/r
Çalışma Sıcaklığı (℃)	–40°C ~ +85°C
Precharge Circuit	None (internal 6 µF / 1000 V) \| — \| —
