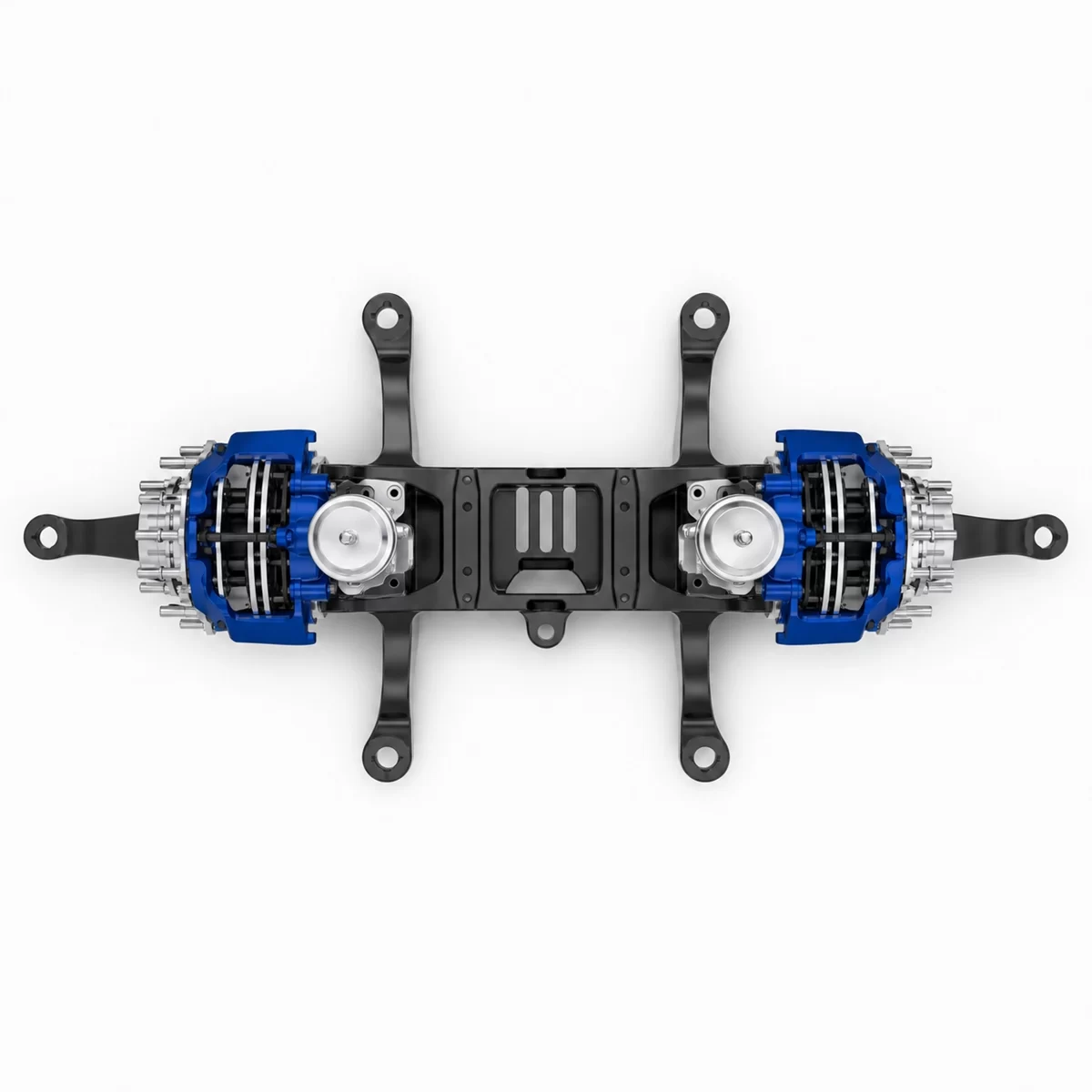

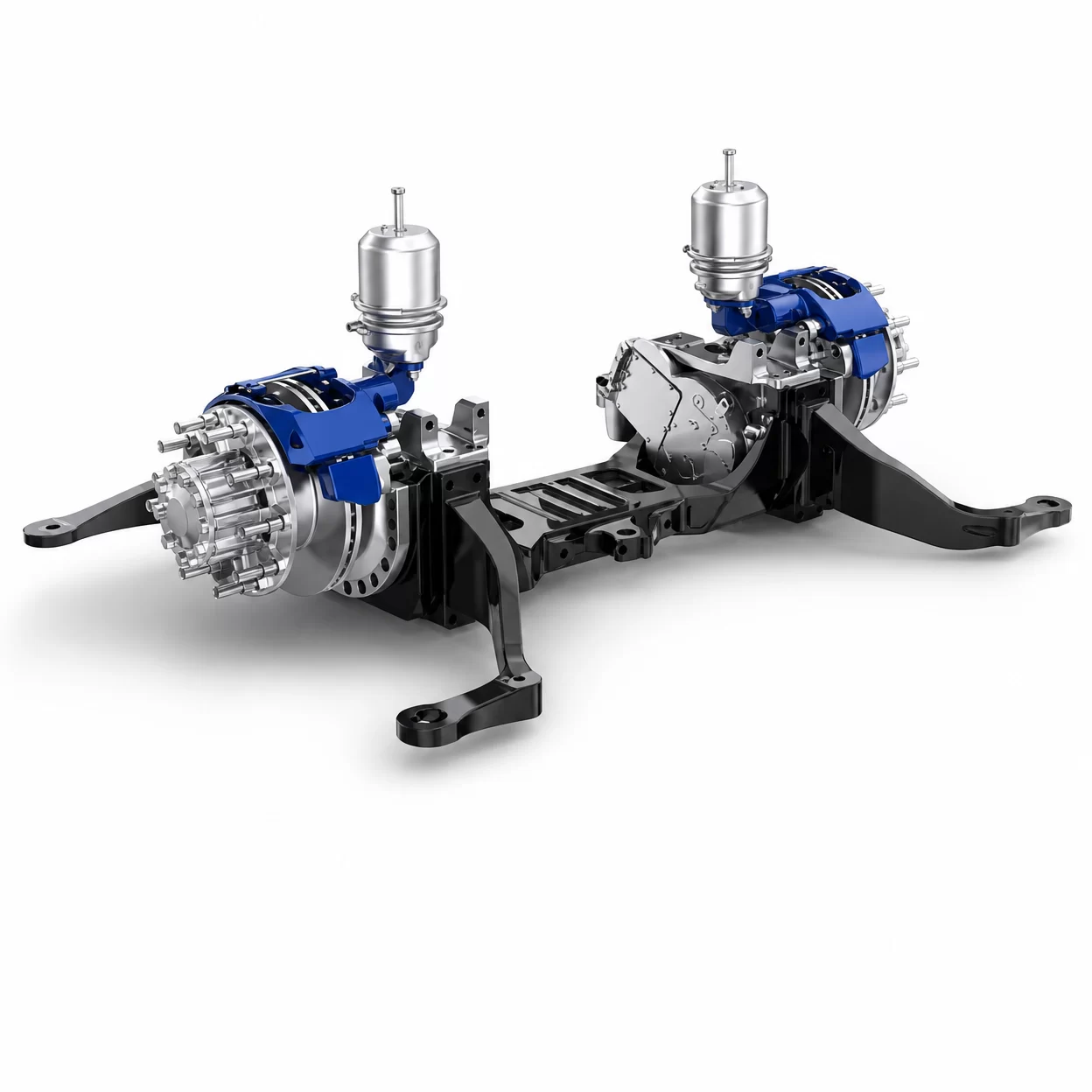

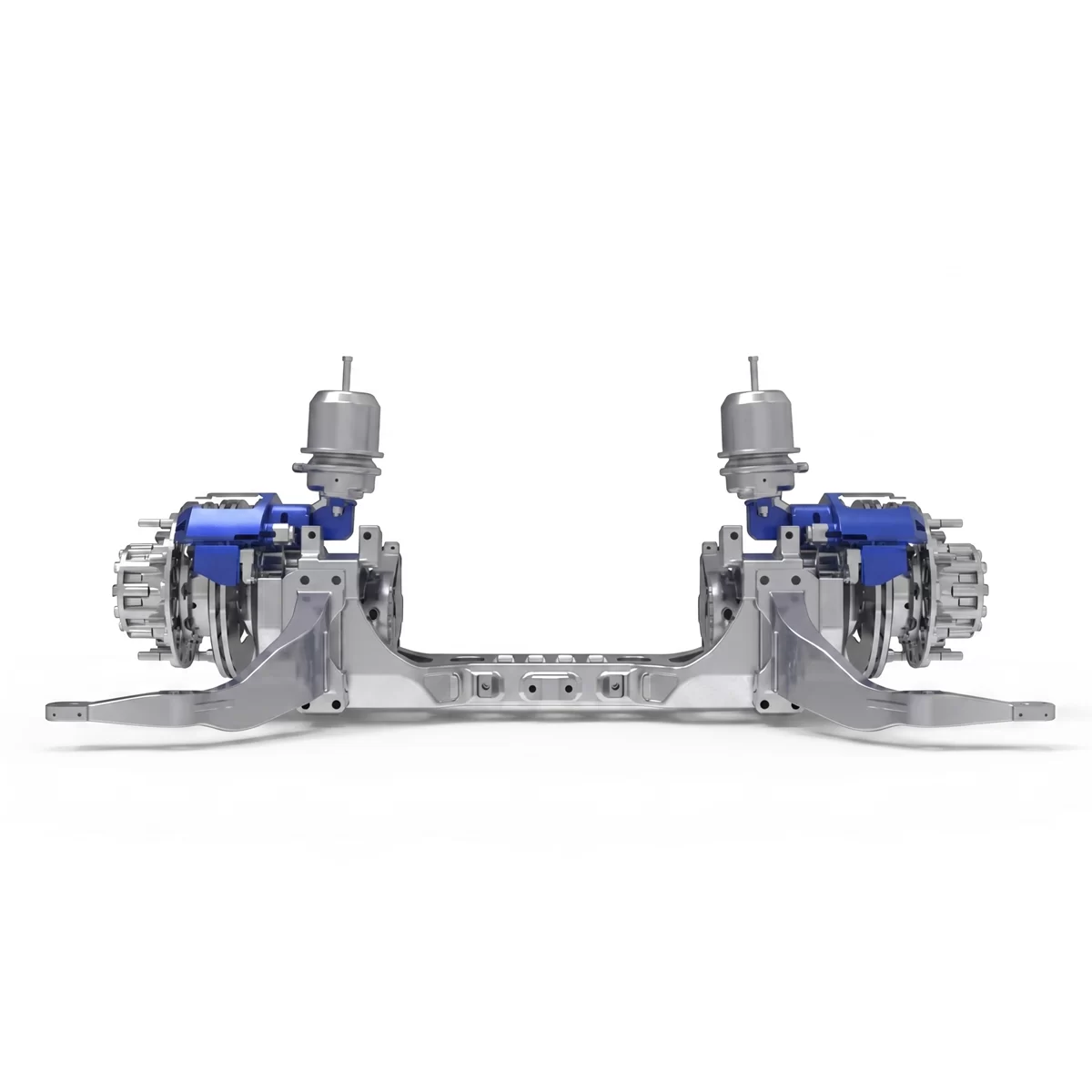

Brogen Bus Electric Axle BG-eAxle-OEEA1400KB

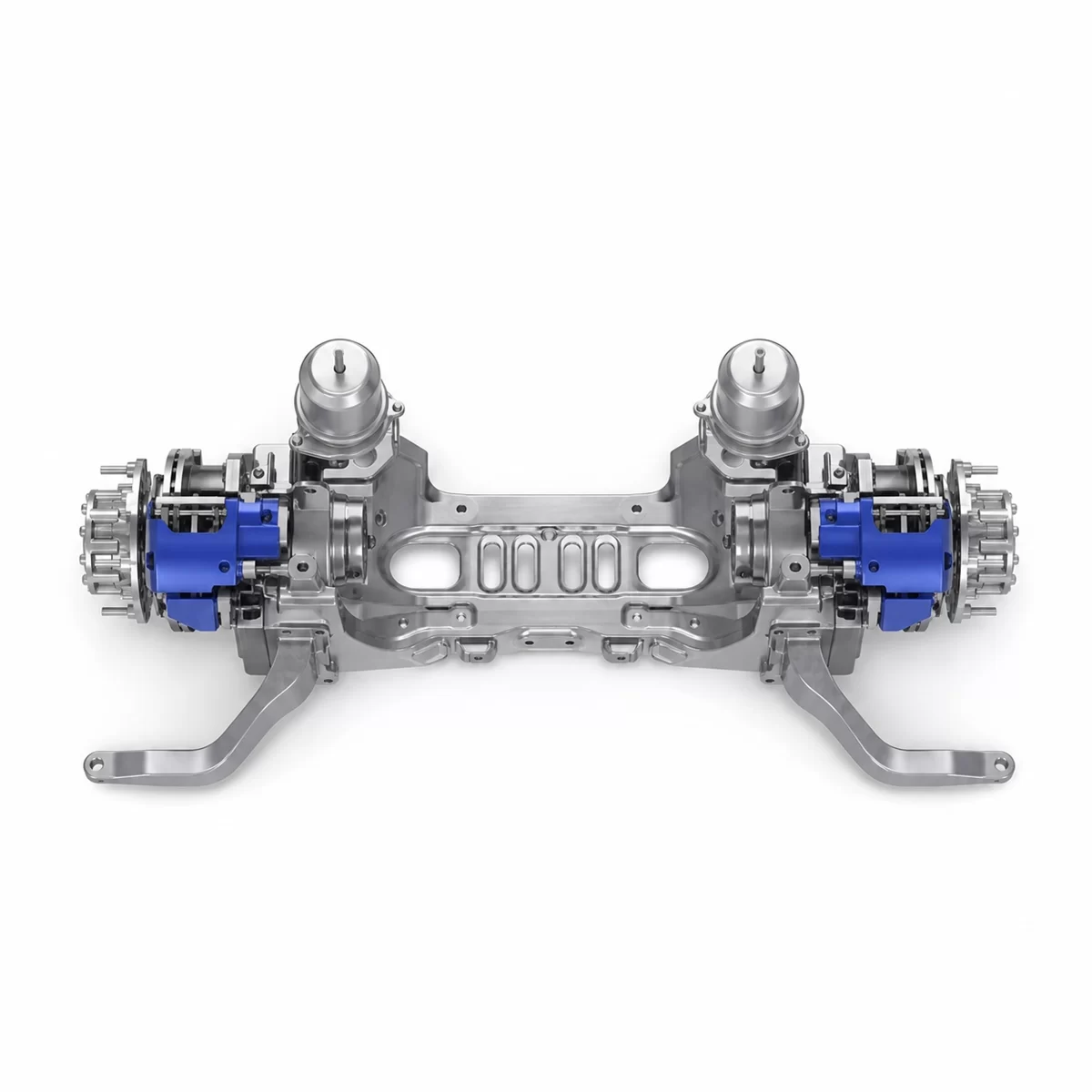

Brogen Bus Electric Axle BG-eAxle-OEEA1400KB - Image 2

Brogen Bus Electric Axle BG-eAxle-OEEA1400KB

Download Catalog

Send Inquiry

Dual PMSM Motors (2 × 60 kW Rated / 120 kW Peak)
Up to 2 × 7,784 N·m Maximum Output Torque
Low-Floor Portal Axle Architecture
770 mm Wide Low-Floor Aisle
600 VDC Rated Operating Voltage
IP68-Rated Waterproof Protection
22.5″ Pneumatic Disc Brake System
1,837 mm Wheel Track Width

Add to wishlist

Compare

Description
Information

Brogen OEEA1400KB is a 10-tonne low-floor portal hub-reduction electric drive axle engineered for 8–10 m electric city buses. Its portal axle design raises the axle beam above the wheel centres, creating a wide 770 mm low-floor aisle for improved passenger accessibility and urban transit efficiency.

The axle integrates dual PMSMs rated at 60 kW each, delivering up to 120 kW peak power and 7,784 N·m maximum output torque per side for smooth and reliable city operation. Built on a 600 VDC architecture, the system improves drivetrain efficiency while reducing cable losses.

Equipped with 22.5-inch pneumatic disc brakes, the OEEA1400KB provides stable and durable braking performance for high-frequency public transit applications.

Additional information

Axle Type	Dual-motor E-Axle, Low-Floor Portal Hub-Reduction E-Axle
Application	8–10m Bus
Axle Load	10t
Max Axle Torque (Nm)	2× 7784
Max Wheel Speed (rpm)	488
Gear Ratio	19.46
Nominal Voltage	600 VDC
Weight (kg)	842
Motor Type	2× PMSM
Motor Peak Power (kW)	2× 120
Motor Rated Power (kW)	2× 60
Motor Peak Torque (Nm)	NA
Motor Rated Torque (Nm)	NA
Brake Type & Spec	22.5", Pneumatic disc brake
Suspension Type	4-airbag air suspension
Steering	NA
Tyre Size	22.5" × 6.75" or, 22.5" × 7.5"
Cooling Method	NA
Aisle Width (mm)	770
Protection Rating	IP68
Power Take-Off (PTO)	NA (standard)
