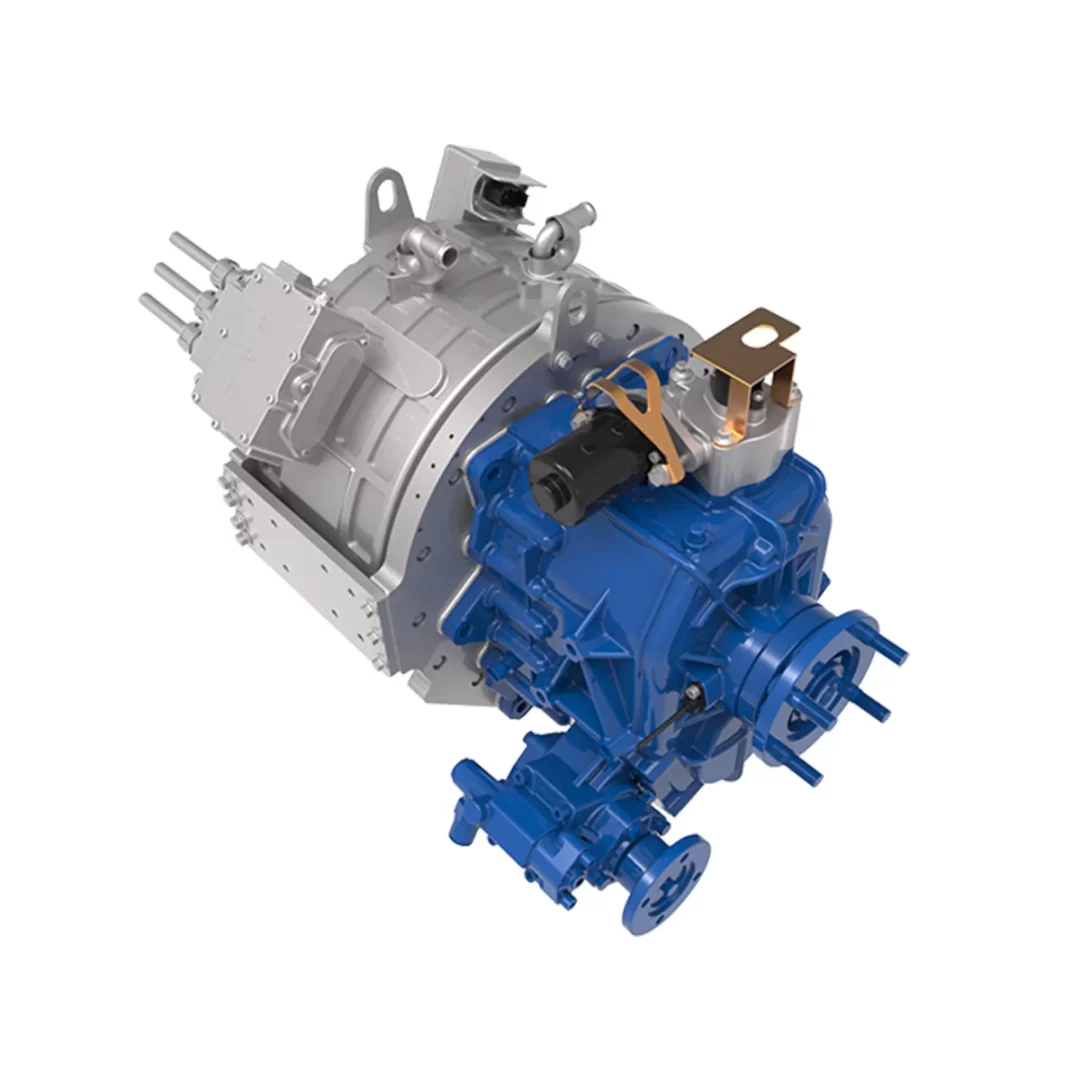

Brogen Electric Heavy Truck Reduction Motor 220kW Powertrain BG-Motor-OETED3010

The OETED3010 steps up to 110 kW rated / 220 kW peak motor power (500 Nm / 1,100 Nm) within a 2-speed gearbox (2.741 / 1 ratio) platform, elevating system maximum output torque to 3,015 Nm. Overall dimensions grow slightly to 595 × 516 × 549 mm and total mass increases to 174 kg. The same PTO specification (1.175 ratio, 300 Nm peak) is retained. The 100% peak power increase over the TED2330 (220 kW vs 120 kW) gives the TED3010 noticeably better overtaking ability and faster gradeability, while the 2-speed ratio keeps the motor in its high-efficiency operating window across a broader vehicle speed range.
