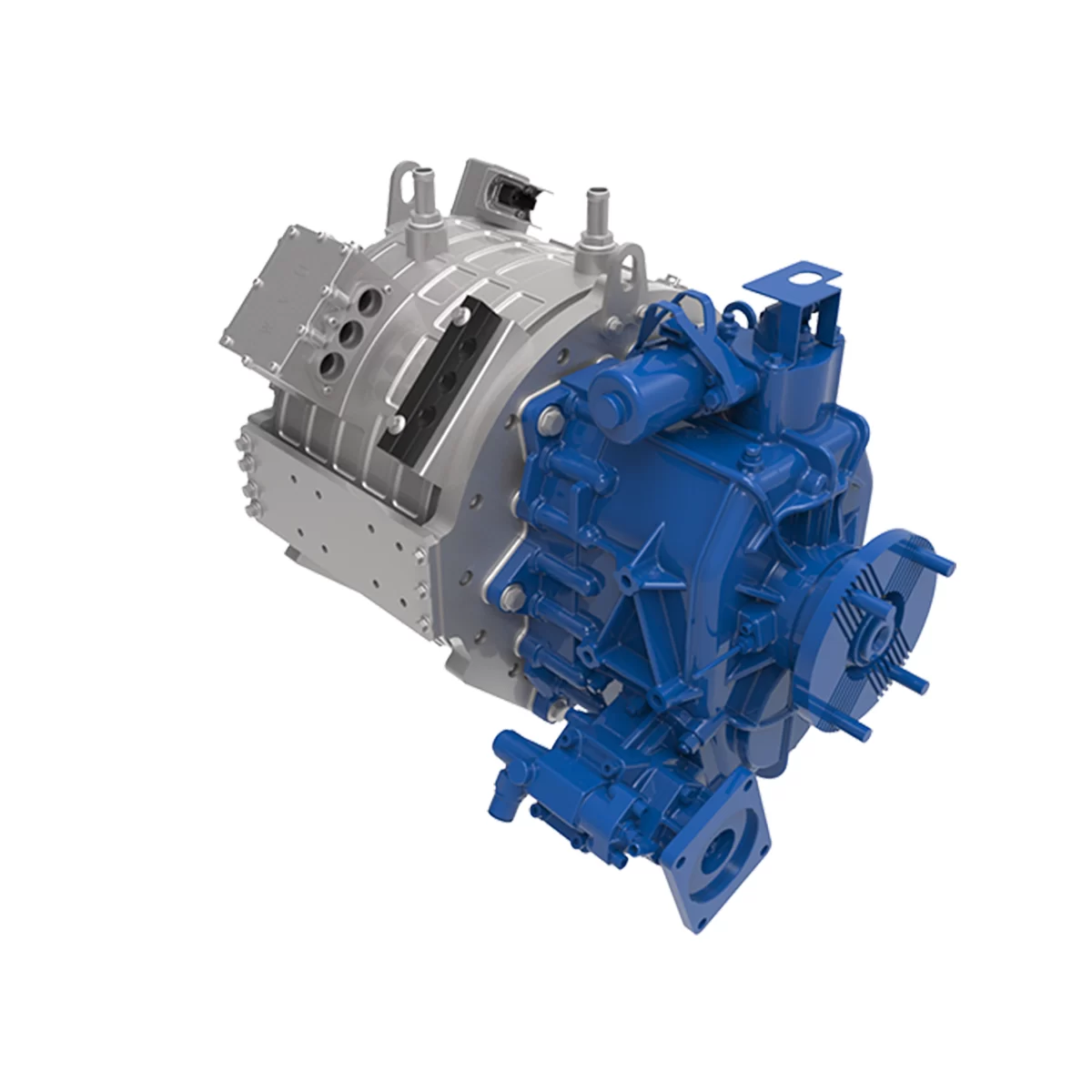

Brogen Electric Heavy Truck Reduction Motor 185kW Powertrain BG-Motor-OETED3380

The OETED3380 is the highest-output variant of the 12-ton TED family. Its 120 kW rated / 185 kW peak motor produces 750 Nm rated / 1,300 Nm peak torque, and through the same 2-speed transmission (2.741 / 1) delivers 3,380 Nm. At 636 × 516 × 549 mm and 210 kg it is the largest and heaviest unit of the three, reflecting the bigger stator needed for 750 Nm rated torque. The lower maximum motor speed (3,500 rpm vs 4,500–5,000 rpm for the other TED units) is a deliberate tradeoff that delivers exceptional low-speed torque density. PTO remains 1.175 / 300 Nm.
