Brogen Electric Light Commercial Vehicle Motor 130kW Powertrain BG-Motor-OEDM1000

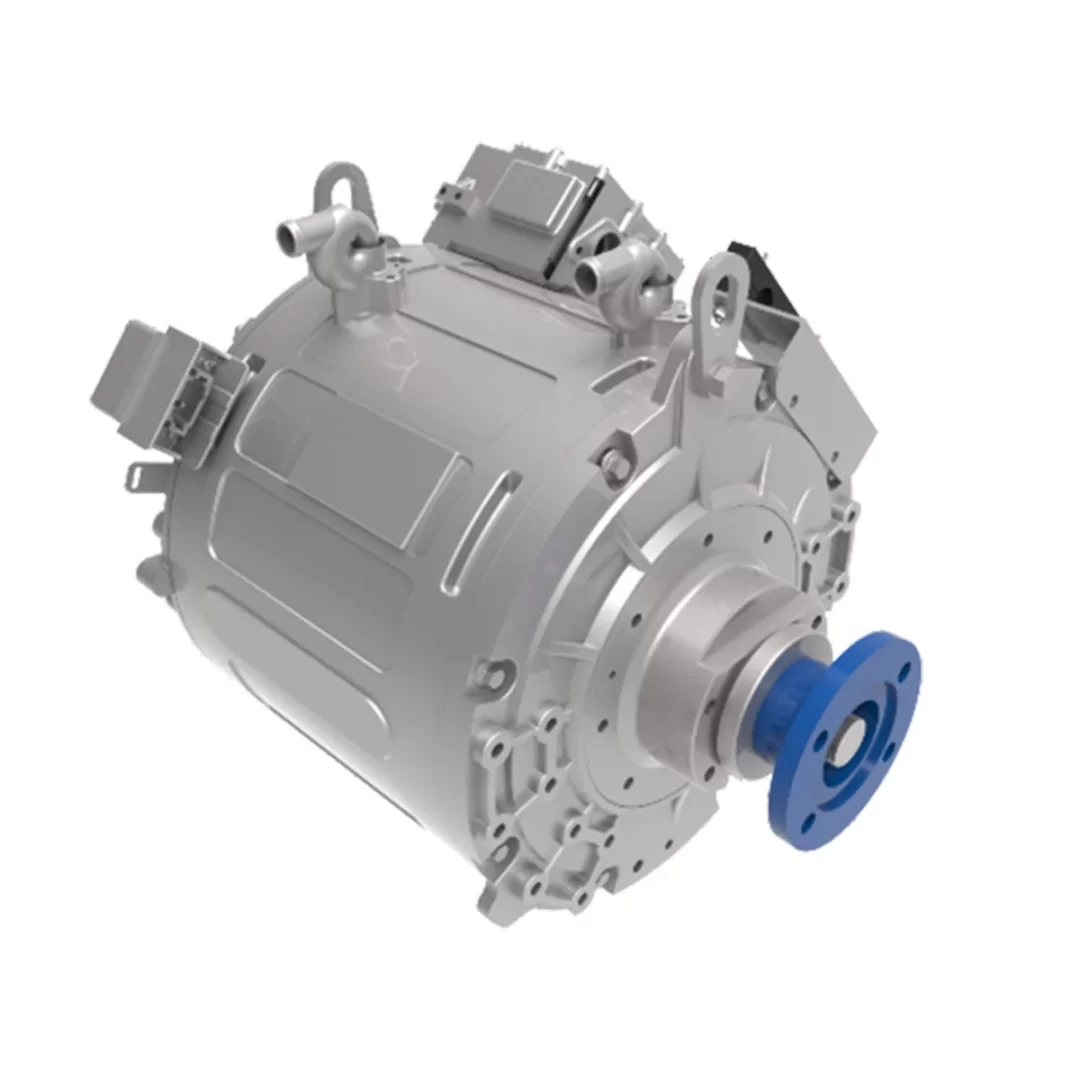

The OEDM1000 covers the popular 6-metre city bus and 4.5-ton light truck segments with 70 kW rated / 130 kW peak power and 400 Nm rated / 1,000 Nm peak torque at 4,000 rpm maximum speed. Its Φ415 × 370 mm envelope and 120 kg mass sit within a slightly longer shell than the DM850 to accommodate the higher-torque stator stack. A key differentiator is the optional 2-in-1 motor-controller integration (motor + inverter in a single housing), which eliminates a separate high-voltage controller box, reduces wiring harness length, and lowers system mass. The integrated variant is shown with a top-mounted blue inverter housing and is particularly attractive for transit operators seeking simpler maintenance procedures.
