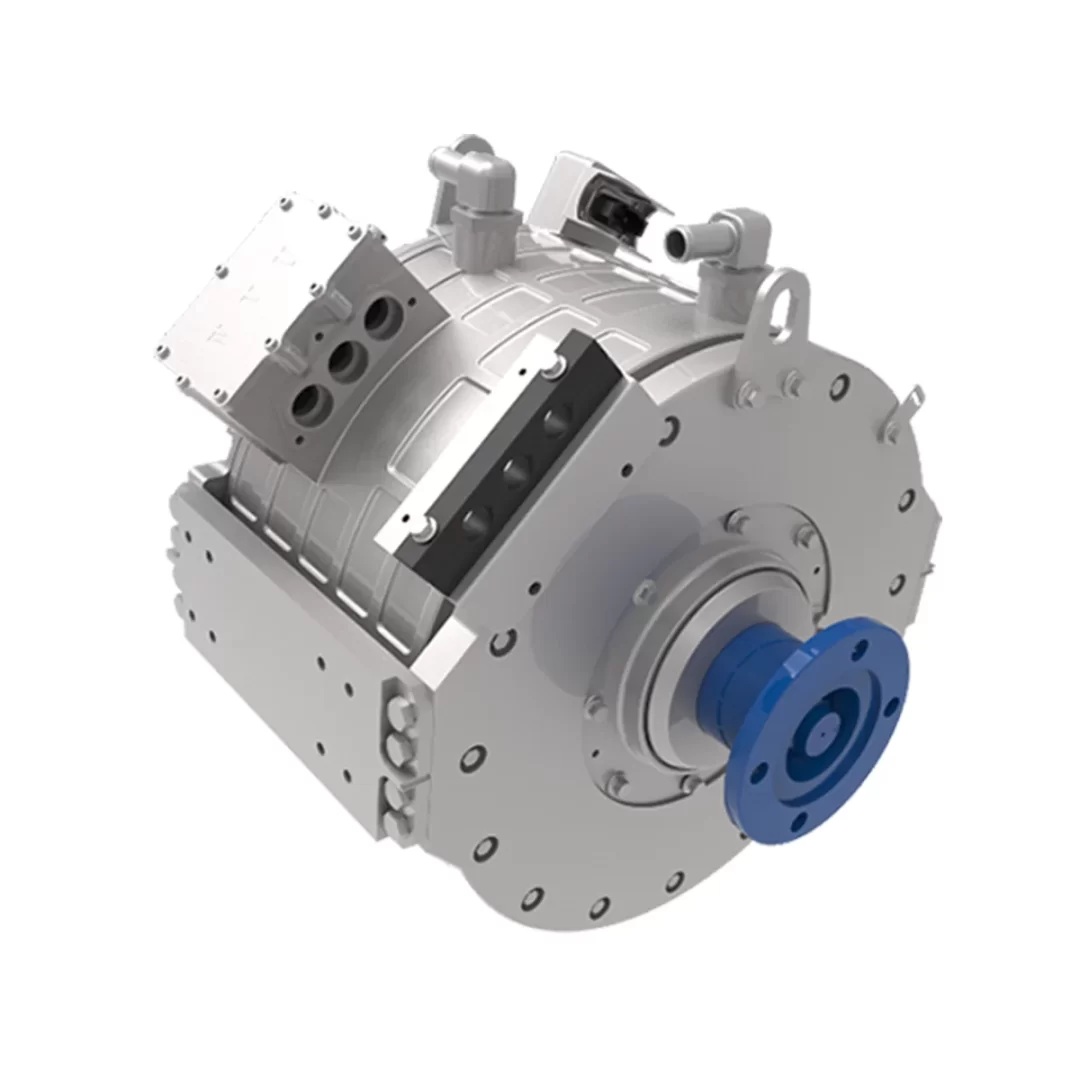

Brogen Electric Light Commercial Vehicle Motor 190kW Powertrain BG-Motor-OEDM1300

The OEDM1300 shares the Φ415 × 370 mm form factor of the DM1000 but packs substantially more torque (550 Nm rated / 1,300 Nm peak) thanks to a higher-current stator design and a slightly increased rated power of 90 kW (190 kW peak). Maximum speed remains 4,000 rpm. The 125 kg weight makes the OEDM1300 an easy upgrade path for operators who need more pulling force—particularly important for port AGVs that must climb ramps under full load, or municipal superstructure trucks with heavy on-board equipment. The generous 2.36× peak-to-rated torque multiplier handles dynamic surges without thermal stress on continuous-duty cycles.
