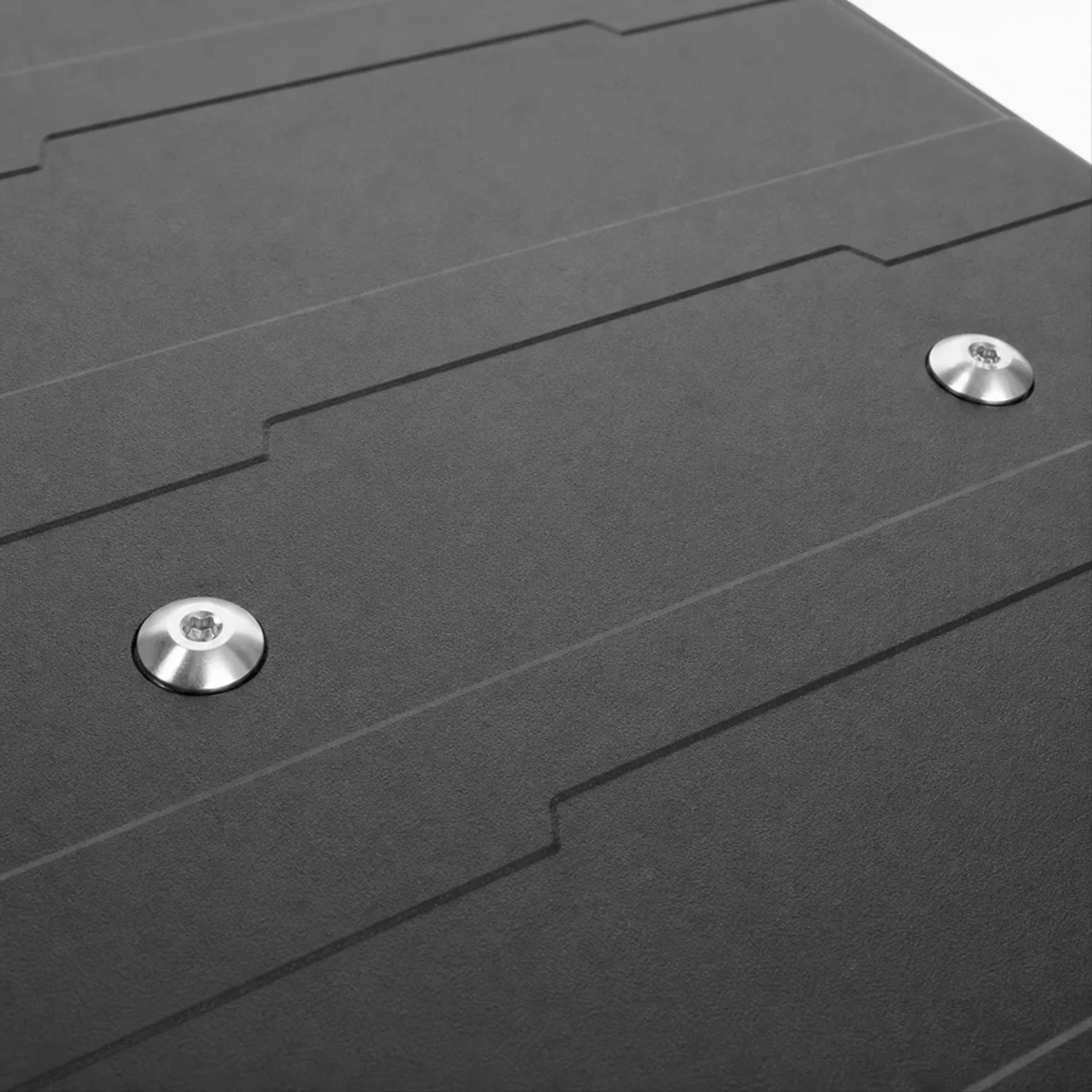

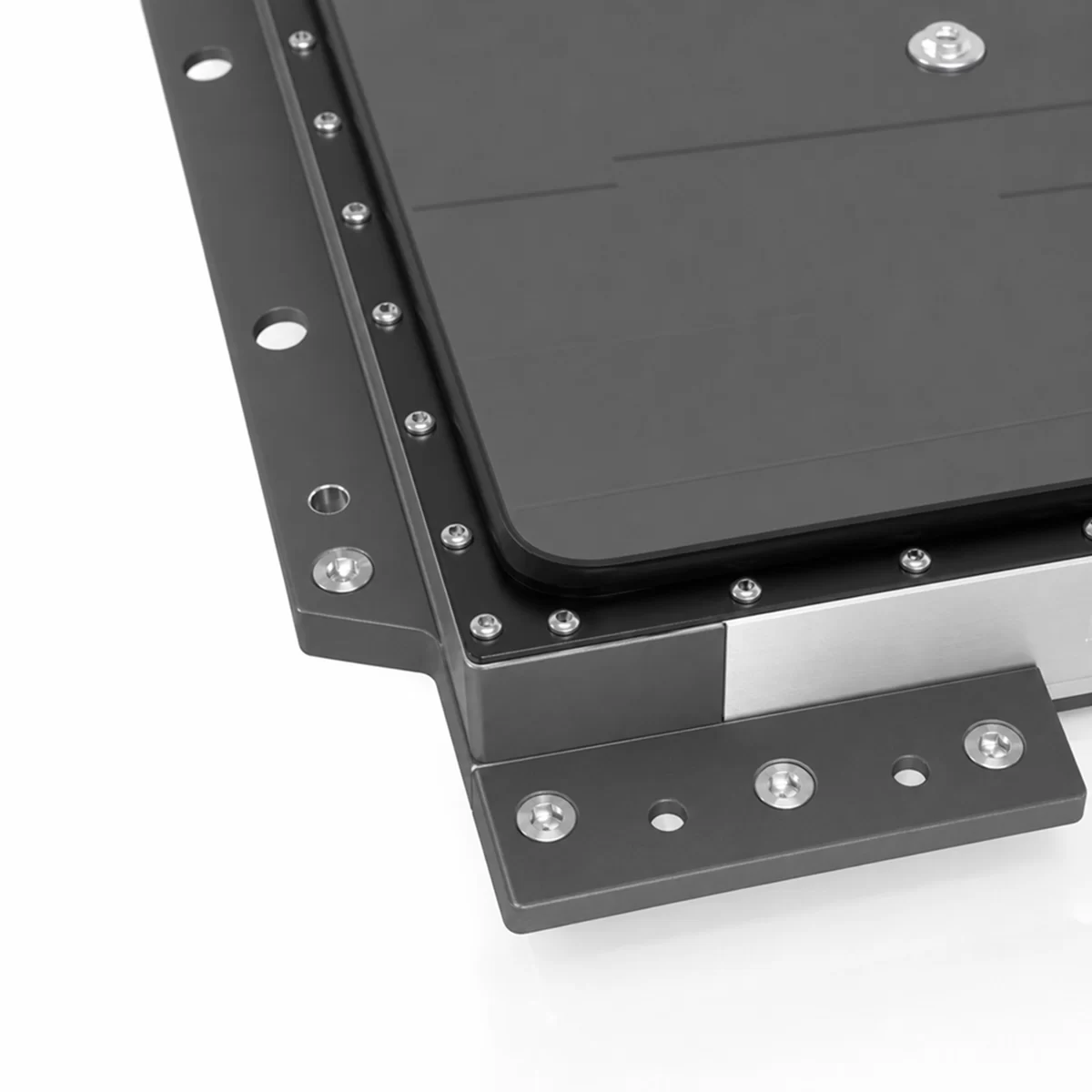

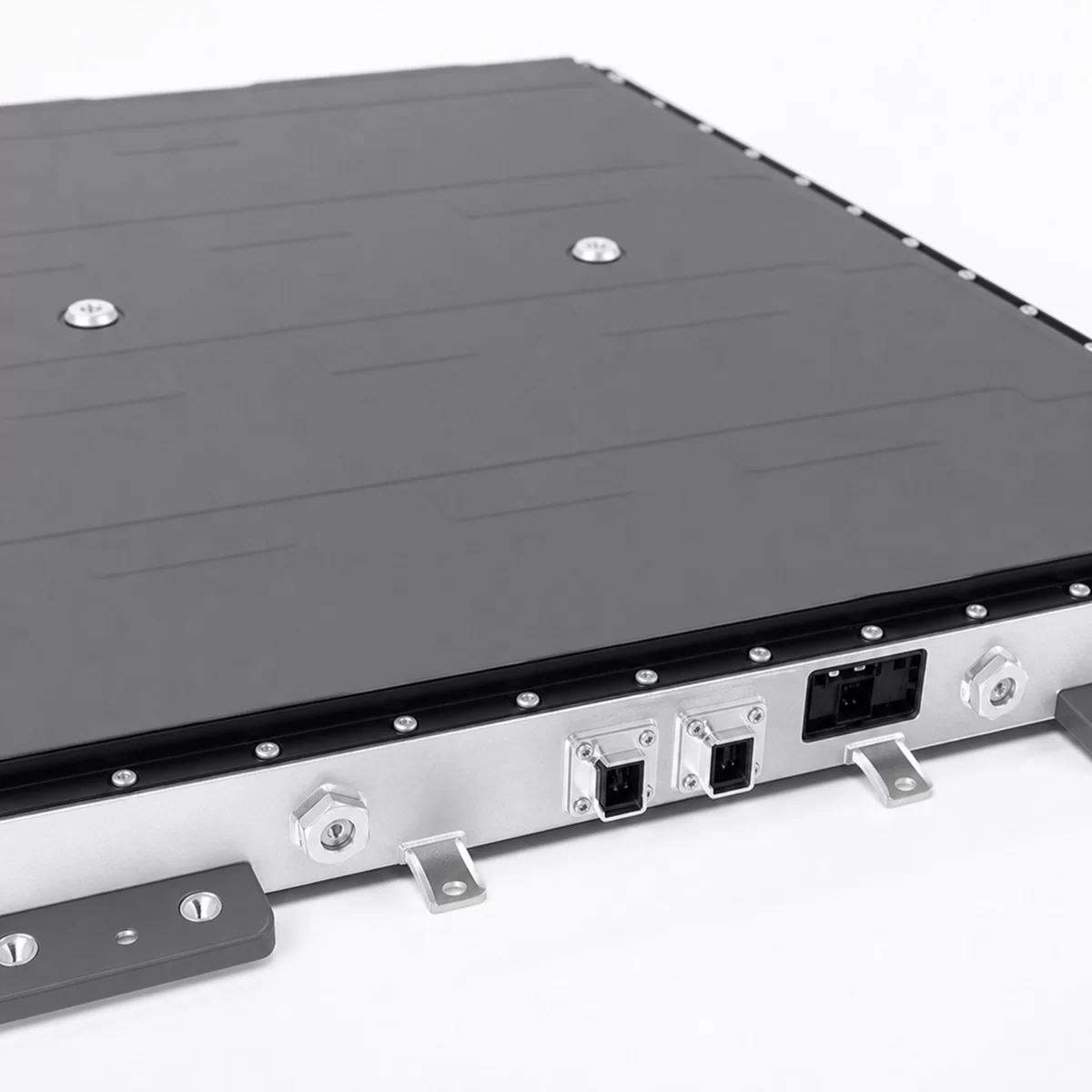

Brogen Blade Battery Pack is a next-generation high-voltage energy system designed for passenger electric vehicles and high-performance commercial platforms. Built on advanced Lithium Iron Phosphate (LFP) chemistry with blade cell architecture, it delivers exceptional safety, structural efficiency, and long-range capability.
With a system energy range of 75.89kWh to 131.99kWh, this platform is engineered for extended driving range and high-capacity energy demands. The blade cell design improves space utilization and enhances thermal stability, reducing risk while increasing overall pack efficiency.
Supporting a high-voltage architecture from 335.8V to 622.64V, the system is optimized for modern EV drivetrains, enabling higher power output, improved efficiency, and compatibility with fast-charging systems.
The battery features liquid cooling combined with heating functionality, ensuring stable performance under high load and across extreme temperature conditions from -30°C to 60°C. With IP67–IP68 protection, it is designed for durability in real-world environments.
With energy density up to 182 Wh/kg and 4000+ cycle life, the Blade Battery Pack offers a powerful combination of range, safety, and long-term reliability, making it ideal for demanding commercial applications.
For lower-voltage standardised box formats, see the LFP Standard Battery Pack series. For platform-specific packs, see the Vehicle-Specific Battery Pack.
Key Parameters
| System Energy | 75.89 kWh / 131.99 kWh |
| Nominal Voltage | 335.8 V / 622.64 V |
| Energy Density | 182 Wh/kg / 171 Wh/kg |
| Protection Rating | IP67/IP6K9K / IP68 |
| SOC Working Range | 0 to 98% |
| Charge Rate | 1 C |
