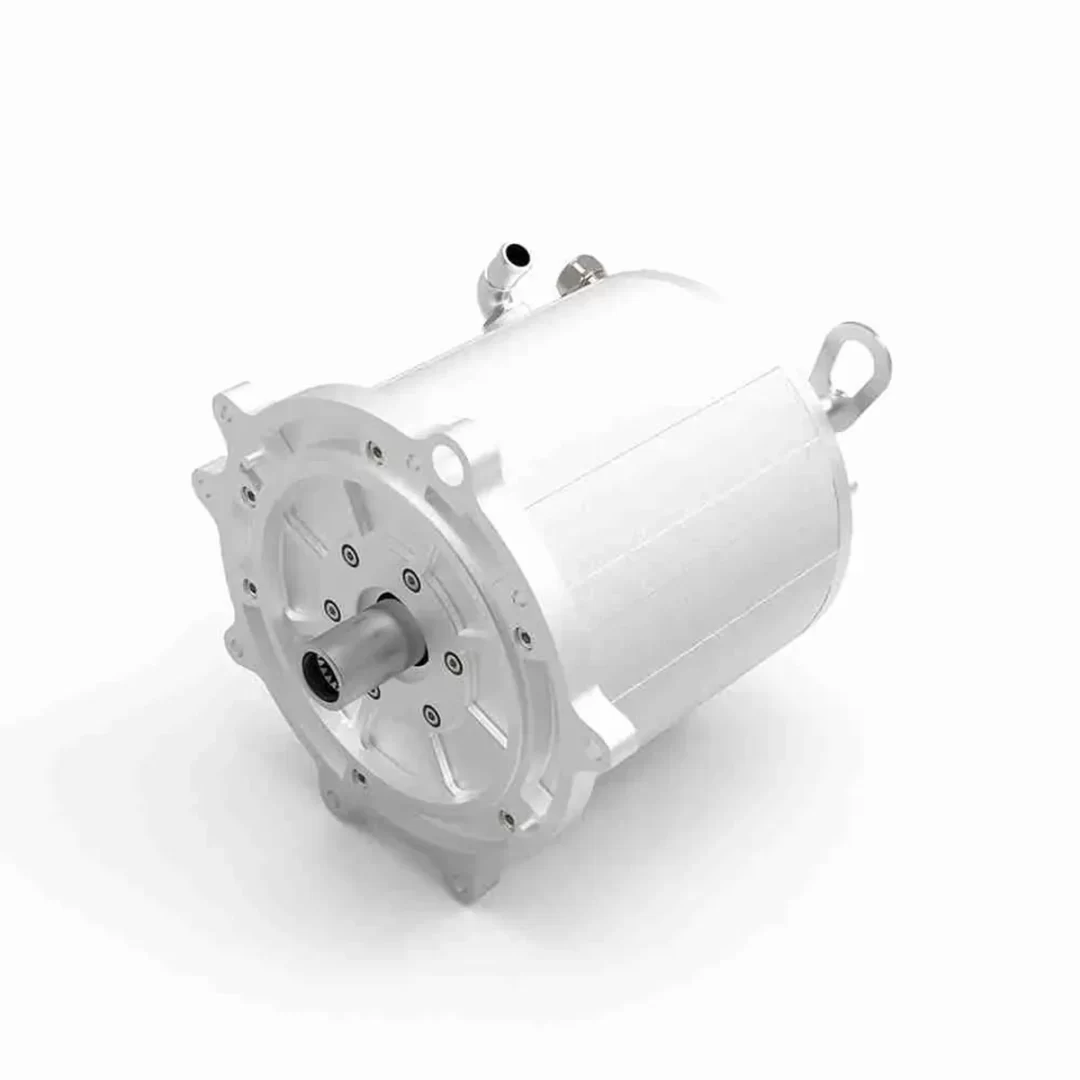

Brogen Electric Light Commercial Vehicle Motor 110kW Powertrain BG-Motor-OEYYM03A

The OEYYM03A targets heavy-duty vehicle segments with its outstanding 110 kW peak power and 342 N·m peak torque within the same Φ255 mm housing family. The key advantage is the high torque which enabled by a stronger winding with a higher rated current of 160 Arms, making it the preferred choice for light buses, heavy logistics vehicles, and industrial applications demanding exceptional tractive effort at low speed. The rated speed of 4,000 rpm and peak speed of 12,000 rpm provide excellent driveability across the full speed range, while peak back-EMF of 660 Vrms reflects the high-flux winding design. At ≤60 kg and Φ255 × 256 mm, the OEYYM03A is compact relative to its peak torque output. Liquid cooling with –40 °C to +85 °C operating range and 15.0 L/min minimum coolant flow ensure it can sustain S9 duty cycles in demanding commercial vehicle operation.
