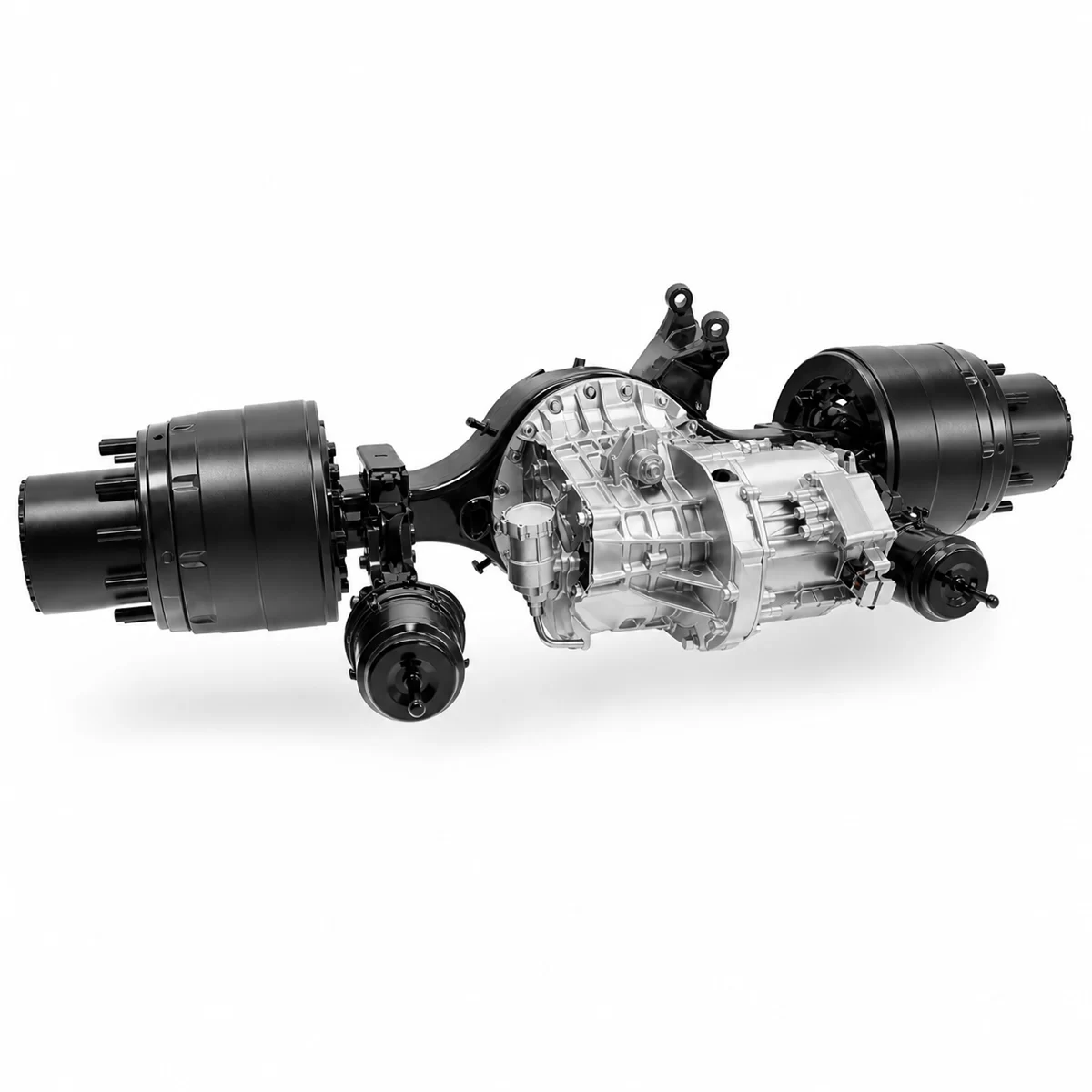

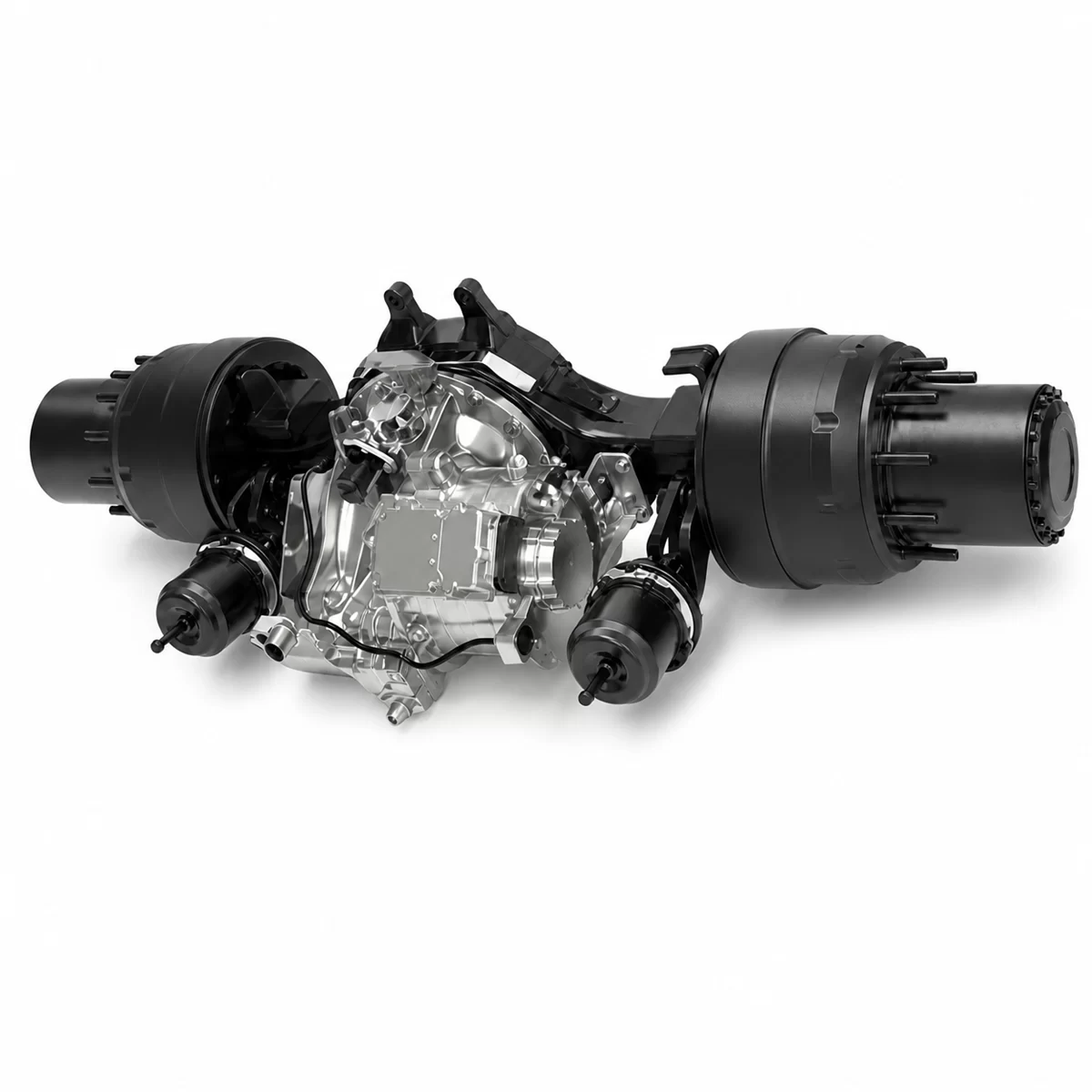

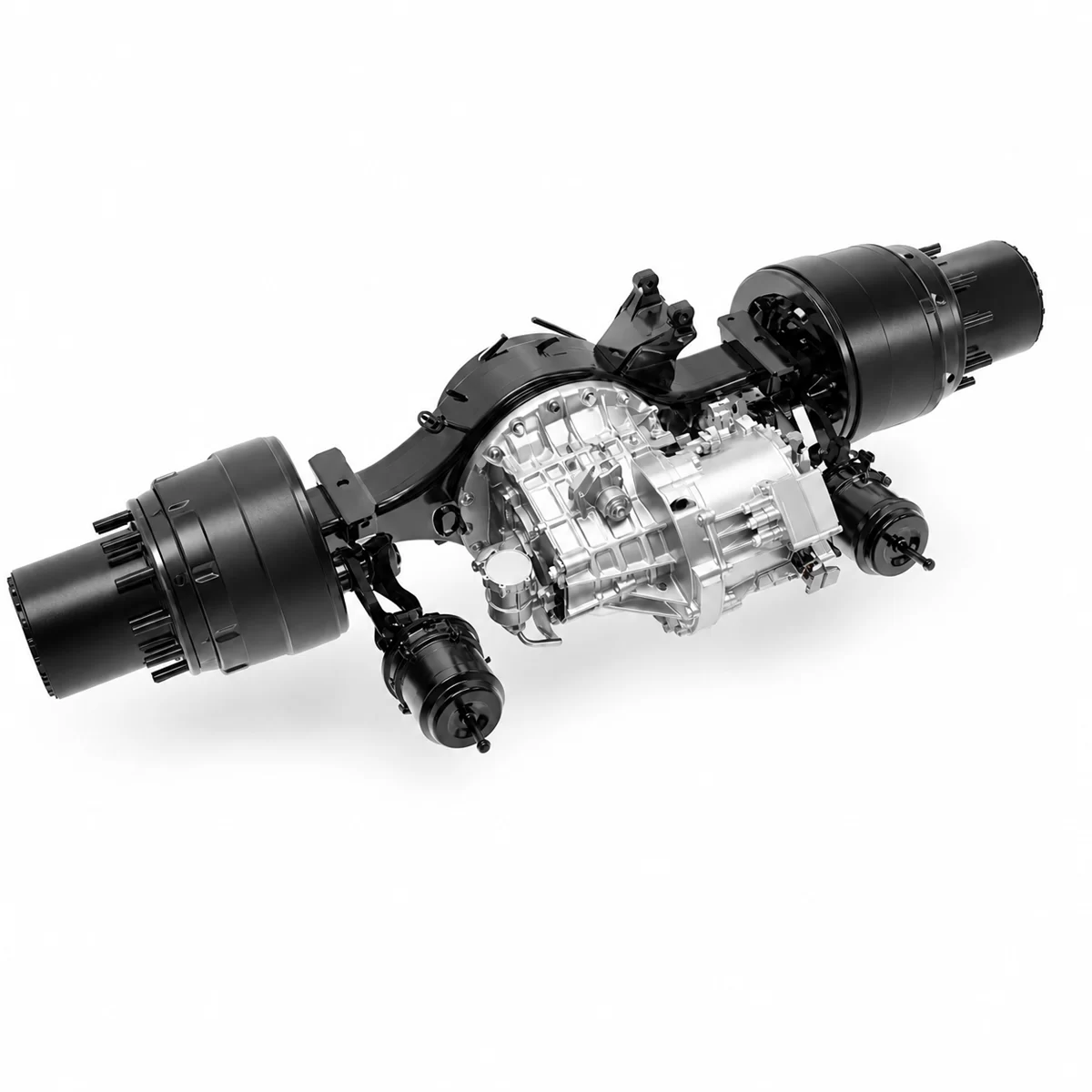

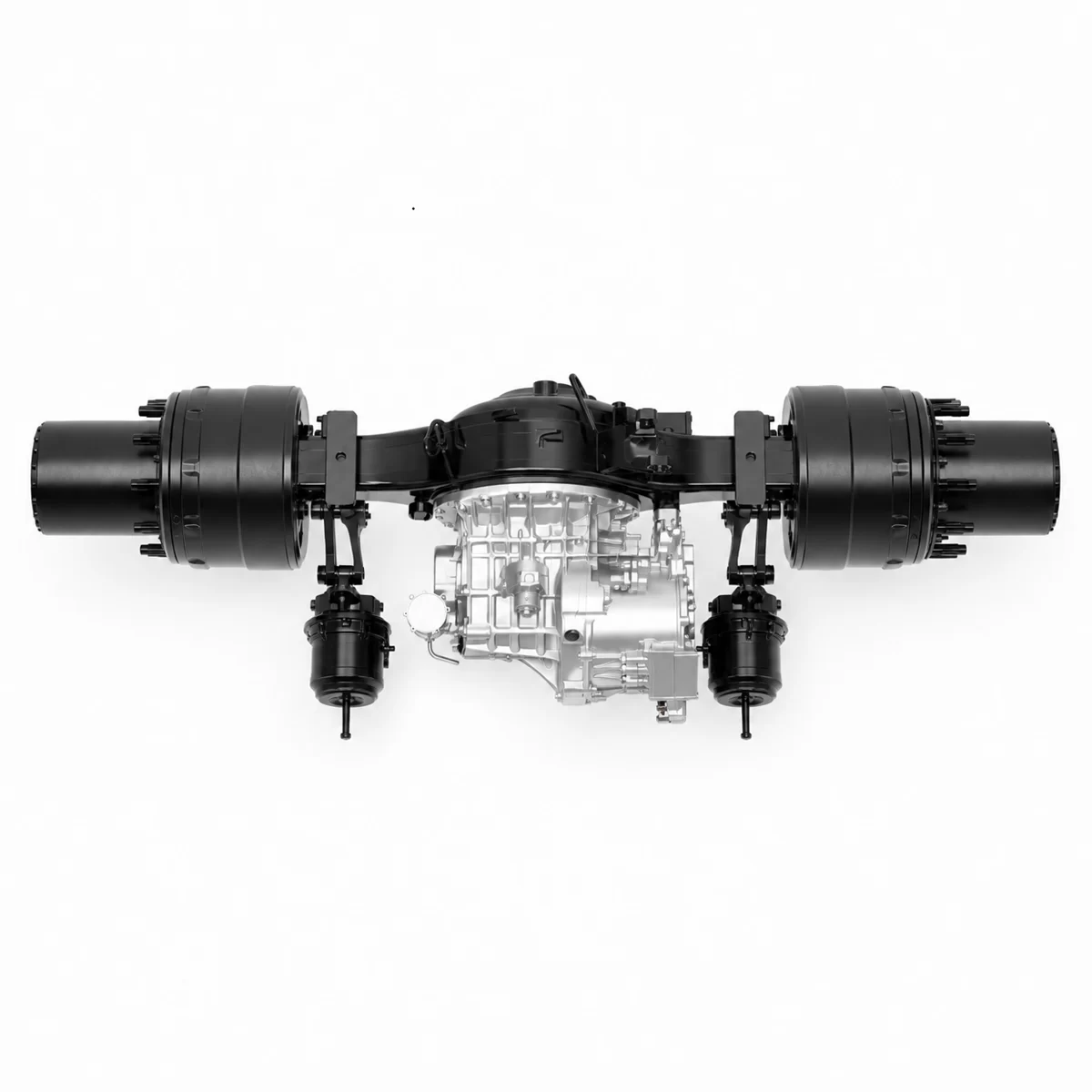

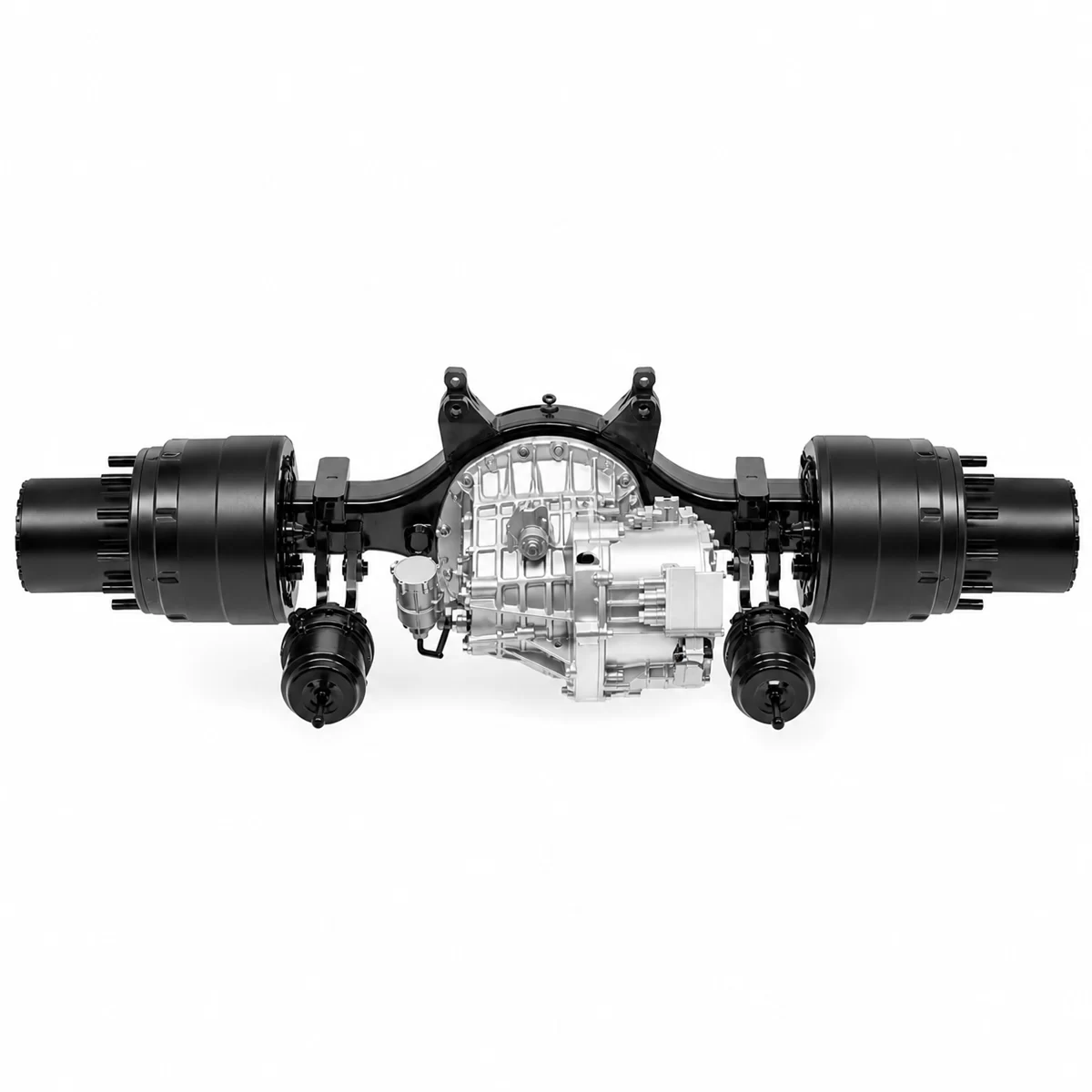

Brogen OESTEA40000Z is a generation 1.6 heavy-duty electric drive axle designed for tractor and freight truck applications requiring extremely high torque density and robust durability under continuous heavy-load operation. It delivers up to 40,000 N·m of wheel-end torque through a combined architecture of a two-speed gearbox and integrated hub reduction, enabling strong low-speed pulling force and efficient high-speed cruising in a single compact drivetrain unit.
| Generation | 1.6 |
|---|---|
| Axle Type | Two-speed E-Axle |
| Application | 4×2 Heavy Trucks, 6×4 Heavy Trucks |
| Axle Load | 13t |
| Max Vehicle Speed (km/h) | 110 |
| Axle Housing Type | Stamped & Welded |
| Max Axle Torque (Nm) | 40000 |
| Weight (kg) | 985, incl. air-bag suspension accessories |
| Wheel Track (Hub Face to Hub Face) (mm) | 1822 |
| Spring Span (Spring Seat to Spring Seat) (mm) | 1137 |
| Wheel Bolt Specification | 2-10×M22×1.5 |
| Wheel Bolt Circle Diameter (mm) | Ø335 |
| Hub Centering Bore (mm) | Φ280.8 |
| Maintenance-Free Hub | Yes |
| Motor Peak Power (kW) | 290 |
| Motor Rated Power (kW) | 136 |
| Motor Peak Torque (Nm) | 860 |
| Motor Rated Torque (Nm) | 326 |
| Motor Maximum Speed (rpm) | 10,000 |
| Gear Ratio | 13.203, 4.367 |
| Hub Reduction Ratio | 3.478 |
| Brake Type & Spec | Drum Brake |
| Brake Specification | φ410×220 |
| Max Brake Torque | 2×18000 N·m |
| Brake Cylinder/Chamber Spec | 30/24, M22×1.5 |
| Power Take-Off (PTO) | NA (standard), Optional (alternate) |
| Differential Lock | Optional |
| Inverter Compatibility | NA |
| Max Parking Brake Torque | NA |
| Voltage Platform | NA |
| Gross Vehicle Mass (kg) | NA |
| Axle Housing Cross-section (mm) | NA |
| Suspension Type | NA |
| Upper Arm Mounting Hole Distance (mm) | NA |
| Lower Arm Mounting Hole Distance (mm) | NA |
| Airbag Center Distance (mm) | NA |
| Motor Voltage (V) | NA |
| Motor Rated Speed (rpm) | NA |
| Compatible Rim | NA |
| Compatible Tire | NA |
| Hub End Configuration | NA |
