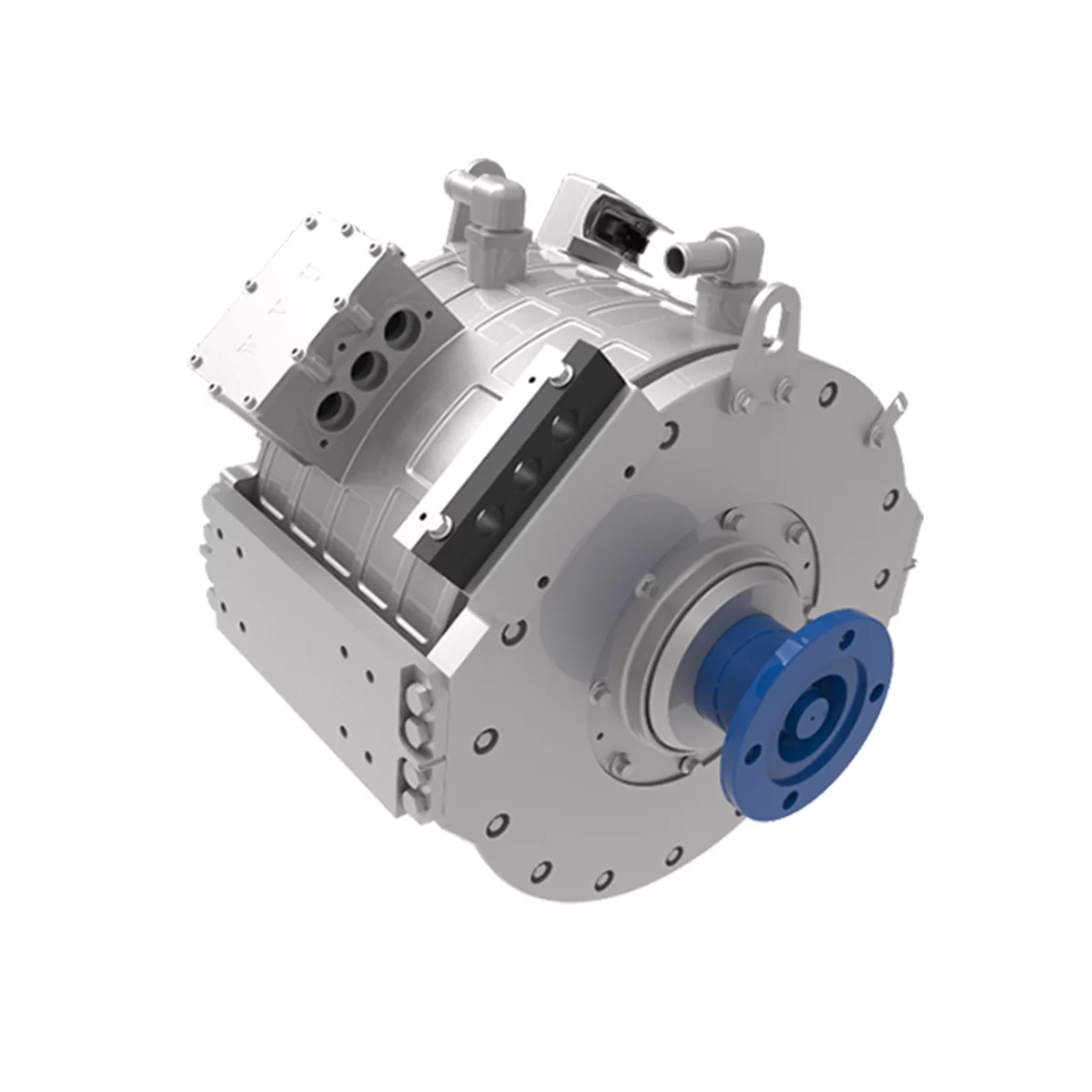

Brogen Electric Bus Motor 220kW Powertrain BG-Motor-OEDM1700

The OEDM1700 has 750 Nm / 1,700 Nm torque specification and Φ415 × 402 mm housing as the DM1700L but raises rated power to 100 kW (220 kW peak) and maximum speed to 4,000 rpm. This makes the OEDM1700 the preferred choice for Coaster-type intercity minibuses and airport shuttle coaches that routinely operate at highway speeds. The higher peak power (220 kW vs 150 kW) gives passengers noticeably stronger hill-climbing performance when loaded.

Product Name	Brogen Electric Light Commercial Vehicle Motor 130kW Powertrain BG-Motor-OEDM1000	Brogen Electric Light Commercial Vehicle Motor 190kW Powertrain BG-Motor-OEDM1300	Brogen Electric Bus Motor 220kW Powertrain BG-Motor-OEDM1700	Brogen Electric Bus Motor 195kW Powertrain BG-Motor-OEDM2100	Brogen Electric Bus Motor 200kW Powertrain BG-Motor-OEDM2400	Brogen Electric Bus Motor 275kW Powertrain BG-Motor-OEDM2800	Brogen Electric Bus Motor 290kW Powertrain BG-Motor-OEDM3400
SKU	BG-Motor-OEDM1000	BG-Motor-OEDM1300	BG-Motor-OEDM1700	BG-Motor-OEDM2100	BG-Motor-OEDM2400	BG-Motor-OEDM2800	BG-Motor-OEDM3400
Motor Rated/Peak Power (kW)	-	-	-	-	-	-	-
Motor Rated/Peak Torque (N·m)	400/1000	500/1300	750/1700	900/2100	1000/2500	1200/2800	1600/3400
Max Motor Speed	4500	4500	4000	3500	2800	3500	3000
Application	4.5T LCV, 6m bus	8m bus, Heavy Duty AGV	8m bus	8m bus	8m bus	12m bus	12m bus
Weight (kg)	120	125	165	195	245	265	284
