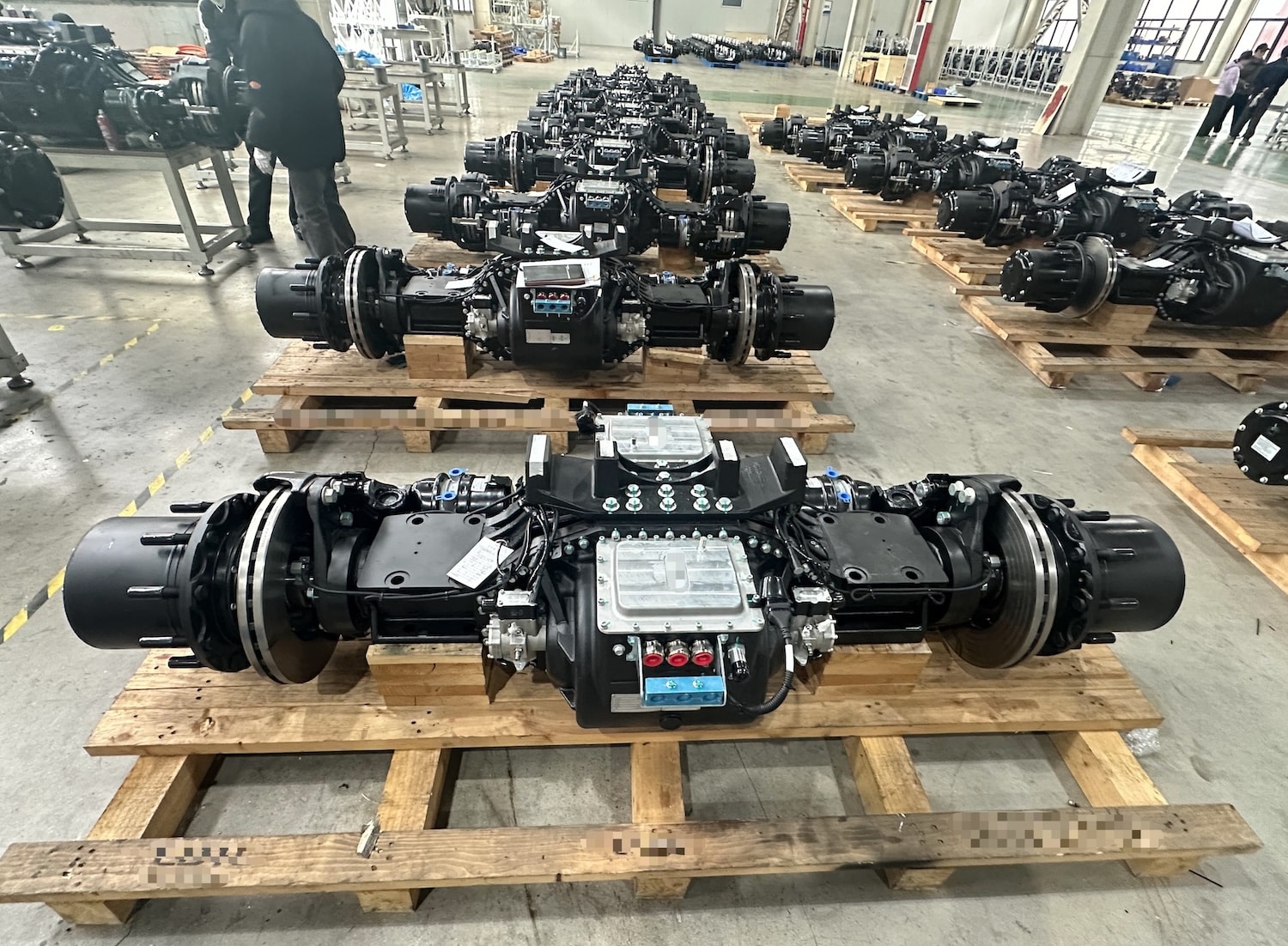

Exciting news！This week our factory will successfully complete the delivery of 20 electric drive axles, which will be shipped to Brazil. Let’s take a look at the photos on site.
Brogen‘s 13 Ton Heavy Truck e-Axle Fearures
This electric drive axle is Brogen’s star product, mainly suitable for heavy vehicles over 13 tons, such as tractors, heavy trucks and big coaches.
Brogen’s 13 Ton distributed electric drive axle features a dual-motor structure integrated with an advanced gear – shifting control strategy. This integration ensures continuous power during gear – shifting, thereby making vehicle driving safer.
It can achieve a weight reduction of 300 kg for the entire vehicle and improve the vehicle’s loading quality.
The integrated design saves chassis space, enabling the bottom layout of the power battery, and reduce the occupation of cargo volume. At the same time, the center of gravity of the entire vehicle is lower, which leads to a lower risk of rollover during steering, better driving stability, and handling.
The maximum output torque of a single axle is 50,000 Nm, providing abundant power. It is most suitable for 4×2 tractors. Through 1 million load – bearing reliability tests with 2.5 times the impact, the load – bearing safety factor is higher.
Equipped with ASR (anti – slip driving) function, it enhances wetland grip and prevents vehicle tailspin. It allows for stable starting on rainy and snowy slippery roads, making vehicle driving safer.
Specifications
| Nombre | 13 Ton Electric Axle C5000N |
| Rated Axle Load | 13000 kg |
| Rated / Peak Power | 160 kW (2X80 kW) / 360 kW (2X180 kW) |
| Rated / Peak Output Torque | 25740 Nm/ 51480 Nm |
| Tensión nominal | 400-750 VDC |
| E-Powertrain Efficiency | 90% |
| E-Powertrain Weight | < 950 kg |
| IP Rating | IP67 |
| Tipo de motor | PMSM Motor |
| E-Powertrain Gear Ratio | 1st gear: 49.459; 2nd gear: 15.33 |
Should you have interest in our drive axle for electric truck? Feel free to contact us!
